OVERVIEW

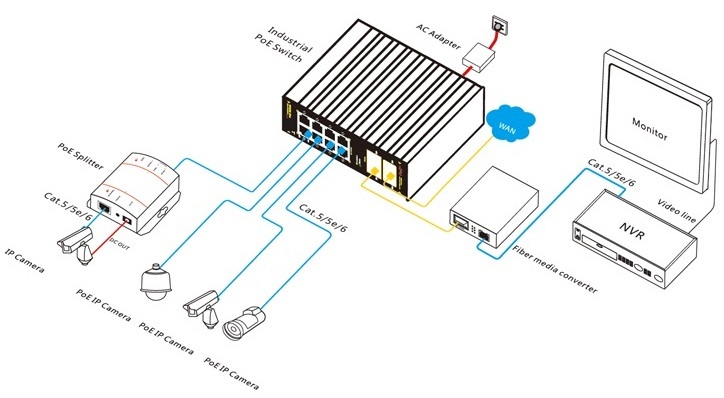

The ONV-IPS31128PFB is a Gigabit uplink industrial PoE fiber switch independently developed by ONV. It has 8*10/100M PoE ports and 2*10/100/1000M RJ45 ports and 2*1000M SFP slot ports. Port 1-8 can support IEEE802.3af/at PoE standard. Single-port PoE power is 30W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP phone, and industrial sensors through the network cable, and meet the network environment that needs a high-density PoE power supply. It is suitable for intelligent transportation, rail transit, electric power, mining, metallurgy and green energy, and industrial scenes such as construction set up a cost-effective and stable communication network.
Unmanaged model, plug and play, no configuration, easy to use.
FEATURE
10/100M access, gigabit TP&SFP port uplink
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ Support 10/100M RJ45 port and gigabit TP&SFP port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Intelligent PoE power supply
◇ IEEE802.3af/at PoE standard, without damaging non-PoE devices.
◇ 8*10/100Base-TX RJ45 ports support PoE power supply to meet the needs of PoE power supply in various scenarios in the industrial field.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ Low power consumption, No fan, aluminum shell.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link, PoE.

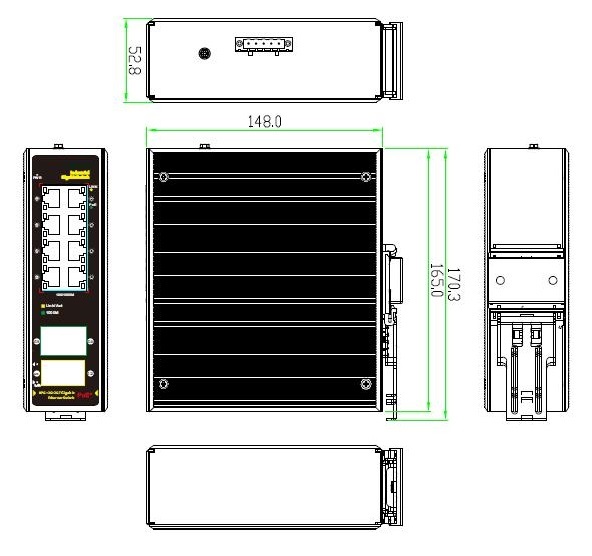

DIMENSION
ORDERING INFORMATION
Model |
Description |
Recommended Power Supply |
ONV-IPS31128PFB |
Unmanaged industrial PoE fiber switch with 8*10/100M PoE ports and 2*10/100/1000M RJ45 ports and 2*1000M SFP slot ports. Port 1-8 can support IEEE802.3af/at PoE standard. It can support DC dual redundant power input and DIN rail mounting. |
120W/240W |
Note: The switch is not include SFP optical module and power supply, and needs to be purchased separately. |
PACKING LIST
PACKING LIST |
CONTENT |
QTY |
UNIT |
12-port gigabit uplink industrial PoE fiber switch |
1 |
SET |
|
User Guide |
1 |
PC |
|
Warranty Card |
1 |
PC |
OPTICAL MODULE
Product |
Model |
Description |
Unit |
1.25G Optical Module
|
2630-G |
Industrial SFP optical module, 1.25G, multi-mode dual fiber 850nm, transmission distance: 550m, LC interface, support DDM function, support hot plug and pull. |
PC |
2632-G |
Industrial SFP optical module, 1.25G, single-mode dual fiber 1310nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
2612-T-G |
Industrial SFP optical module, 1.25G, single-mode single fiber TX1310nm/RX1550nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
2613-R-G |
Industrial SFP optical module, 1.25G, single-mode single fiber TX1550nm/RX1310nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
2612-T-G-SC |
Industrial SFP optical module, 1.25G, single-mode single fiber TX1310nm/RX1550nm, transmission distance: 20km, SC interface, support DDM function, support hot plug and pull. |
PC |
|
2613-R-G-SC |
Industrial SFP optical module, 1.25G, single-mode single fiber TX1550nm/RX1310nm, transmission distance: 20km, SC interface, support DDM function, support hot plug and pull. |
PC |
|
Power Module |
2633 |
1.25G SFP optical module transfers to 10/100/1000M RJ45 port. |
PC |
POWER SUPPLY
Product |
Model |
Description |
Unit |
130W Desktop Power Adaptor |
GWS-AP130-52 |
Desktop tape 130W single set of output power adapter Input Voltage:AC 100V~240V 50-60Hz,2.3A Output Voltage:DC 52V 2.5A Operation Temperature:-20℃—+65℃ |
PC |
250W Desktop Power Adaptor |
GWS-AP250-52 |
Desktop tape 250W single set of output power adapter Input Voltage:AC 100V~240V 50-60Hz,4.1A Output Voltage:DC 52V 4.8A Operation Temperature:-20℃—+65℃ |
PC |
120W DIN Rail Industrial Power Supply |
GWS-DP120-48 |
Din Rail type 120W single set of output power supply Input Voltage:AC 100V~240V 50-60Hz,1.5A Output Voltage:DC 48V 2.5A Operation Temperature:-40℃—+70℃ |
PC |
240W DIN Rail Industrial Power Supply |
GWS-DP240-48 |
Din Rail type 240W single set of output power supply Input Voltage:AC 100V~240V 50-60Hz,3A Output Voltage:DC 48V 5A Operation Temperature:-40℃—+70℃ |
PC |
RELATED PRODUCT
Model |
Description |
ONV-IPS31021PF |
Unmanaged industrial PoE fiber switch with 1*10/100M RJ45 port and 1*155M SC port. Port 1-2 can support PoE IEEE802.3af/at. It can support dual DC redundant power input (Phoenix terminal connection) and DIN rail mounting. |
ONV-IPS31032PF |
Unmanaged industrial PoE fiber switch with 2*10/100M PoE ports and 1*155M SC port. Port 1 -2 can support PoE IEEE802.3af/at. It can support dual DC redundant power input (Phoenix terminal connection) and DIN rail mounting. |
ONV-IPS31004PF |
Unmanaged industrial PoE fiber switch with 4*10/100M RJ45 ports and 1*155M SC port. Port 1-4 can support PoE IEEE802.3af/at. It can support dual DC redundant power input (Phoenix terminal connection) and DIN rail mounting. |
ONV-IPS31064PF |
Unmanaged industrial PoE fiber switch with 4*10/100M RJ45 ports and 2*155M SC ports. Port 1-4 can support PoE IEEE802.3af/at. It can support DC dual redundant power input and DIN rail mounting. |
ONV-IPS31084PF |
Unmanaged industrial PoE fiber switch with 6*10/100M RJ45 ports and 2*155M SC port. Port 1-4 can support PoE IEEE802.3af/at. It can support dual DC redundant power input (Phoenix terminal connection) and DIN rail mounting. |
TECHNICAL SPECIFICATION
Model |
ONV-IPS31128PFB |
Interface Characteristics |
|
Fixed Port |
2*1000Base-X SFP slot ports(Data) 2*10/100/1000Base-T RJ45 ports (Data) 8*10/100Base-TX PoE ports (Data/Power) 2 set of V+, V- redundant DC power interface (5 Pin Phoenix terminal) |
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) |
Ethernet Port |
Port 1-8 support 10/100Base-TX and port 9-10 support 10/100/1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption |
SFP Slot Port |
Gigabit SFP optical fiber interface, default no include optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) |
Optical Cable/ Distance |
Multi-mode: 850nm /0-500m, Single-mode: 1310nm /0-40km,1550nm /0-120km |
Chip Parameter |
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
Forwarding Mode |
Store and Forward(Full Wire Speed) |
Switching Capacity |
12Gbps |
Forwarding Rate@64byte |
7.14Mpps |
MAC |
2K |
Buffer Memory |
2M |
Jumbo Frame |
9.2K |
LED Indicator |
Power: PWR (Green), Network: Link, link/Act (Yellow), PoE: PoE (Green), Rate: 1000M (Green) |
PoE & Power Supply |
|
PoE Port |
Port 1-8 |
Power Supply Pin |
Default 1/2 (+) 3/6 (-) |
Max Power Per Port |
30W, IEEE802.3af/at |
Power Consumption |
Standby<8W, Full load: af<120W, af<240W |
Working Voltage |
DC48-57V, 5 Pin industrial Phoenix terminal, support anti-reverse protection |
Power Supply |
No, optional 48V/120W industrial power supply |
Physical Parameter |
|
Operation TEMP / Humidity |
-40~+80°C, 5%~90% RH Non condensing |
Storage TEMP / Humidity |
-40~+85°C, 5%~95% RH Non condensing |
Dimension (L*W*H) |
165*148*54mm |
Net /Gross Weight |
<1.3kg / <1.8 kg |
Installation |
Desktop, 35mm DIN rail |
Certification & Warranty |
|
Lightning Protection |
Lightning protection: 6KV 8/20us, Protection level: IP40 IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge IEC61000-4-3(RS):10V/m(80~1000MHz) IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4-10(damped oscillation):30A/m 1MHz IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV IEC61000-4-16(common-mode transmission):30V, 300V,1s FCC Part 15/CISPR22(EN55022): Class B IEC61000-6-2(Common Industrial Standard) |
Mechanical Properties |
IEC60068-2-6 (anti vibration) IEC60068-2-27 (anti shock) IEC60068-2-32 (free fall) |
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
Warranty |
5 years, lifelong maintenance. |
