OVERVIEW

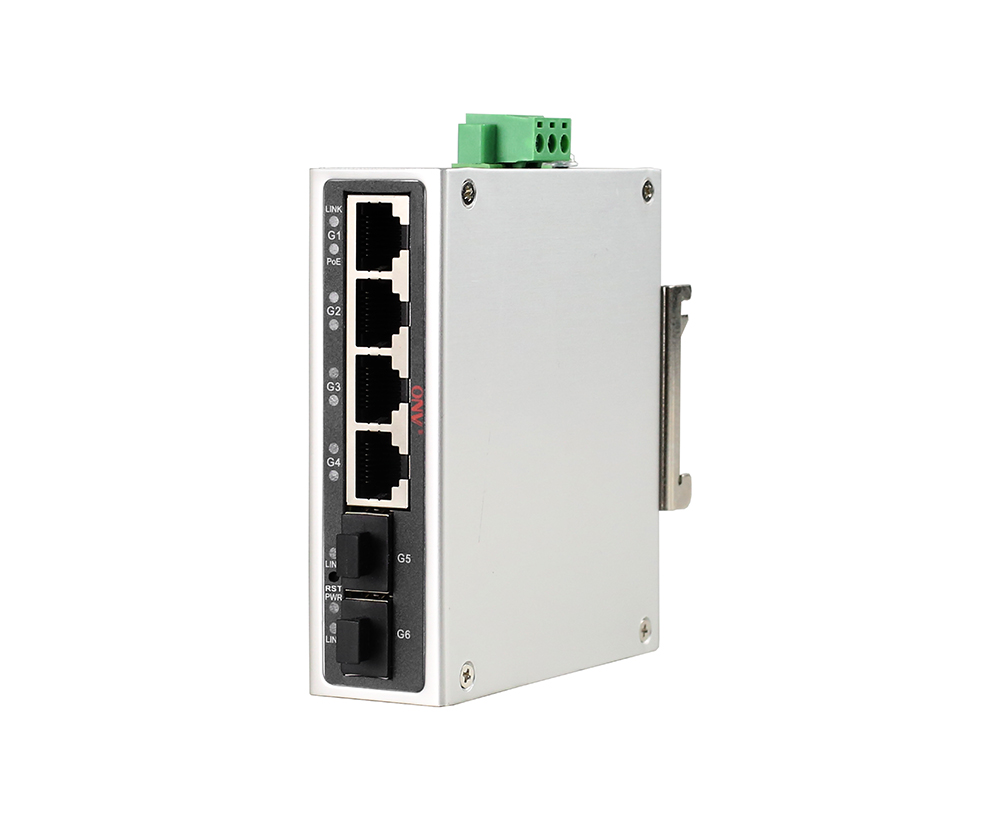

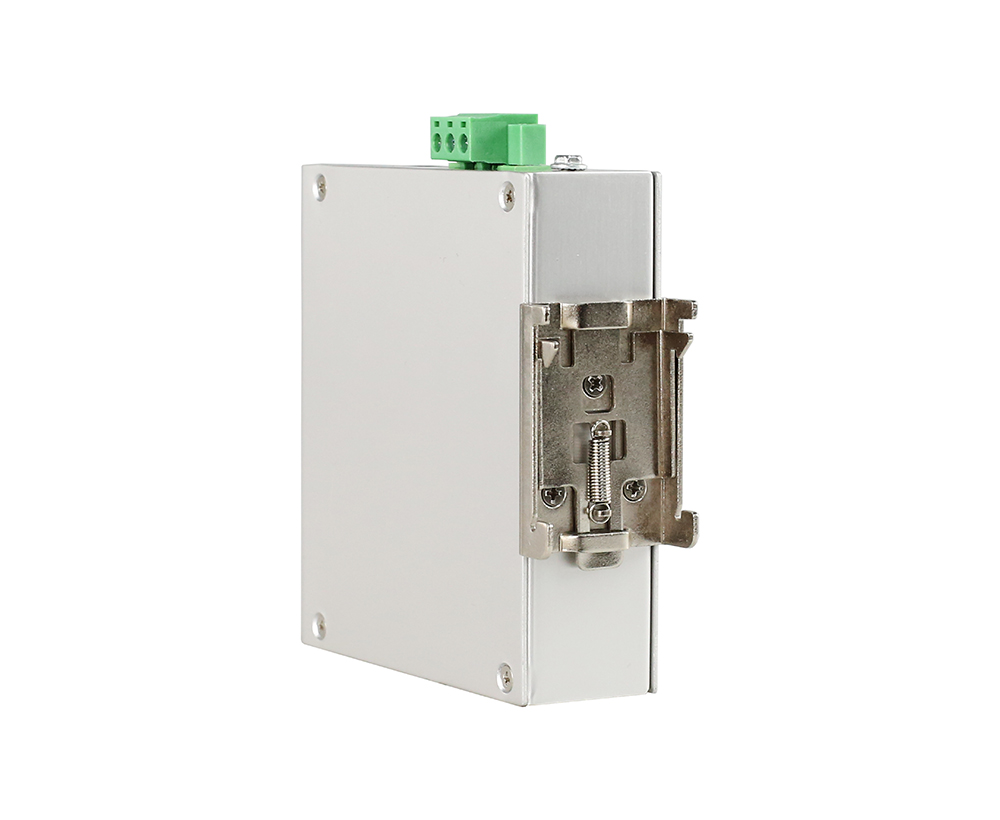

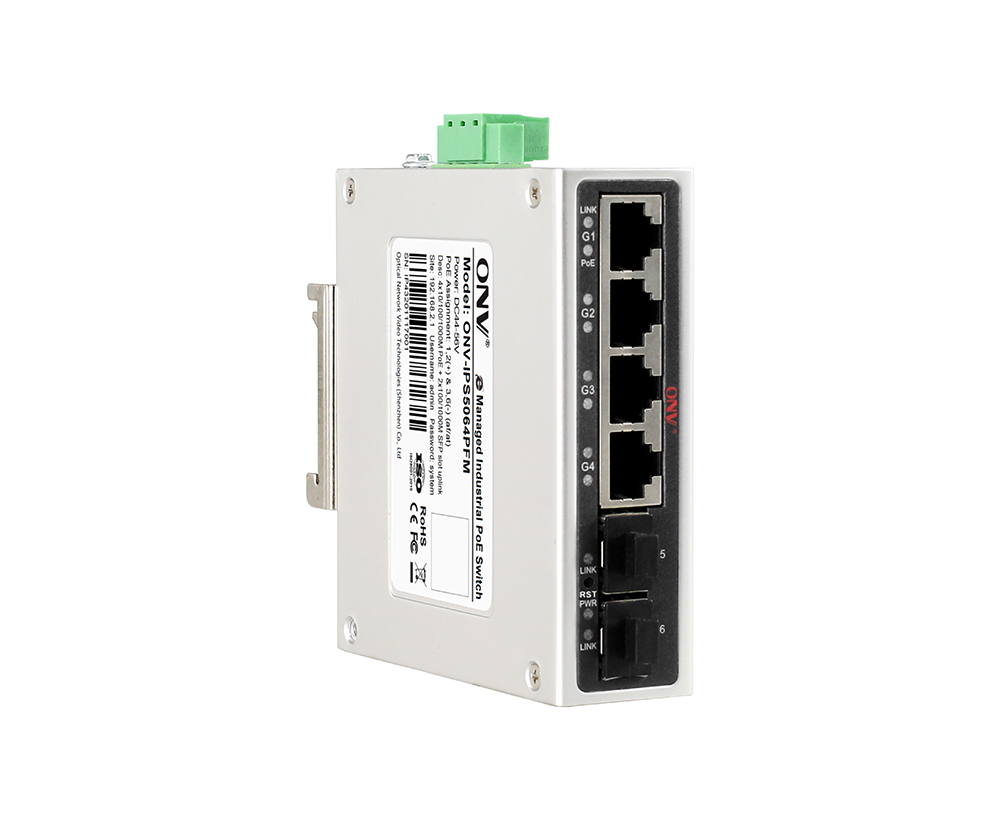

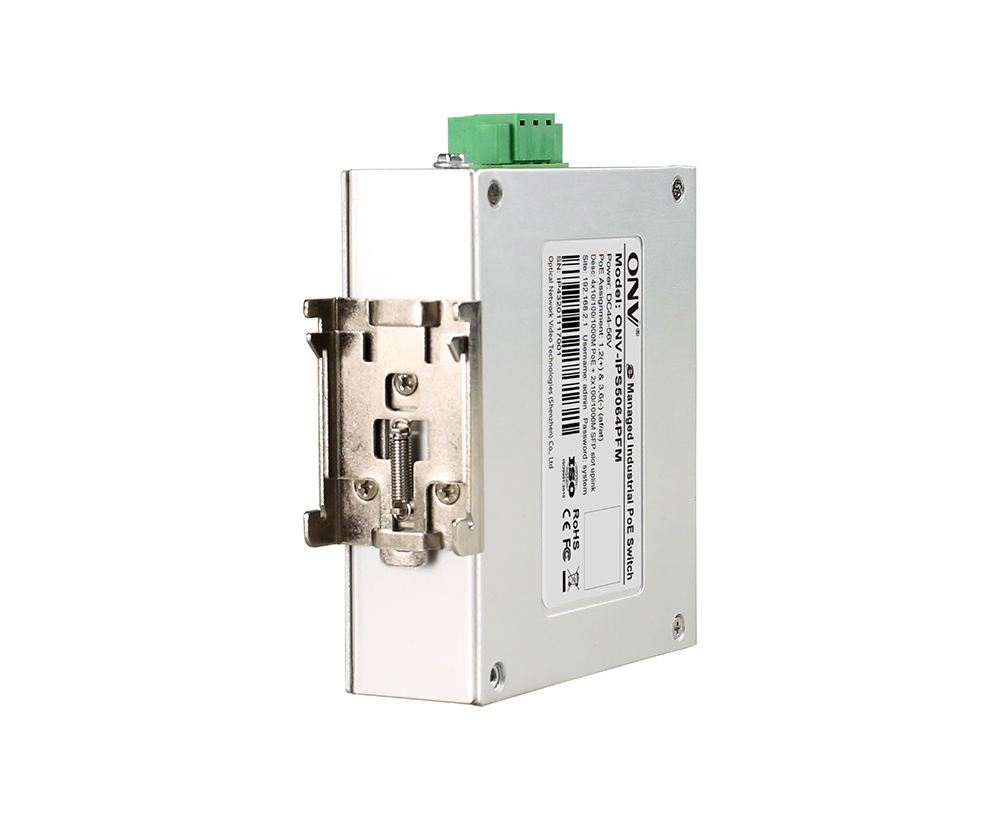

The ONV-IPS5064PFM is a Gigabit Easy managed industrial PoE fiber switch independently developed by ONV. It has 4*10/100/1000Base-T adaptive RJ45 ports and 2*100/1000Base-X uplink SFP fiber ports. Ports 1-4 support the IEEE 802.3af/at PoE standard, with up to 30W of PoE power per port. As a PoE power supply device, it can automatically detect and identify compliant powered devices and supply power to them via a network cable. It can power PoE terminal devices such as wireless APs, IP cameras, VoIP phones, and industrial sensors via a network cable, meeting the needs of network environments requiring high-density PoE power. It is suitable for building economical, efficient, stable, and reliable communication networks in industrial scenarios such as intelligent transportation, rail transit, power industry, mining, oil, shipping, metallurgy, and green energy construction.

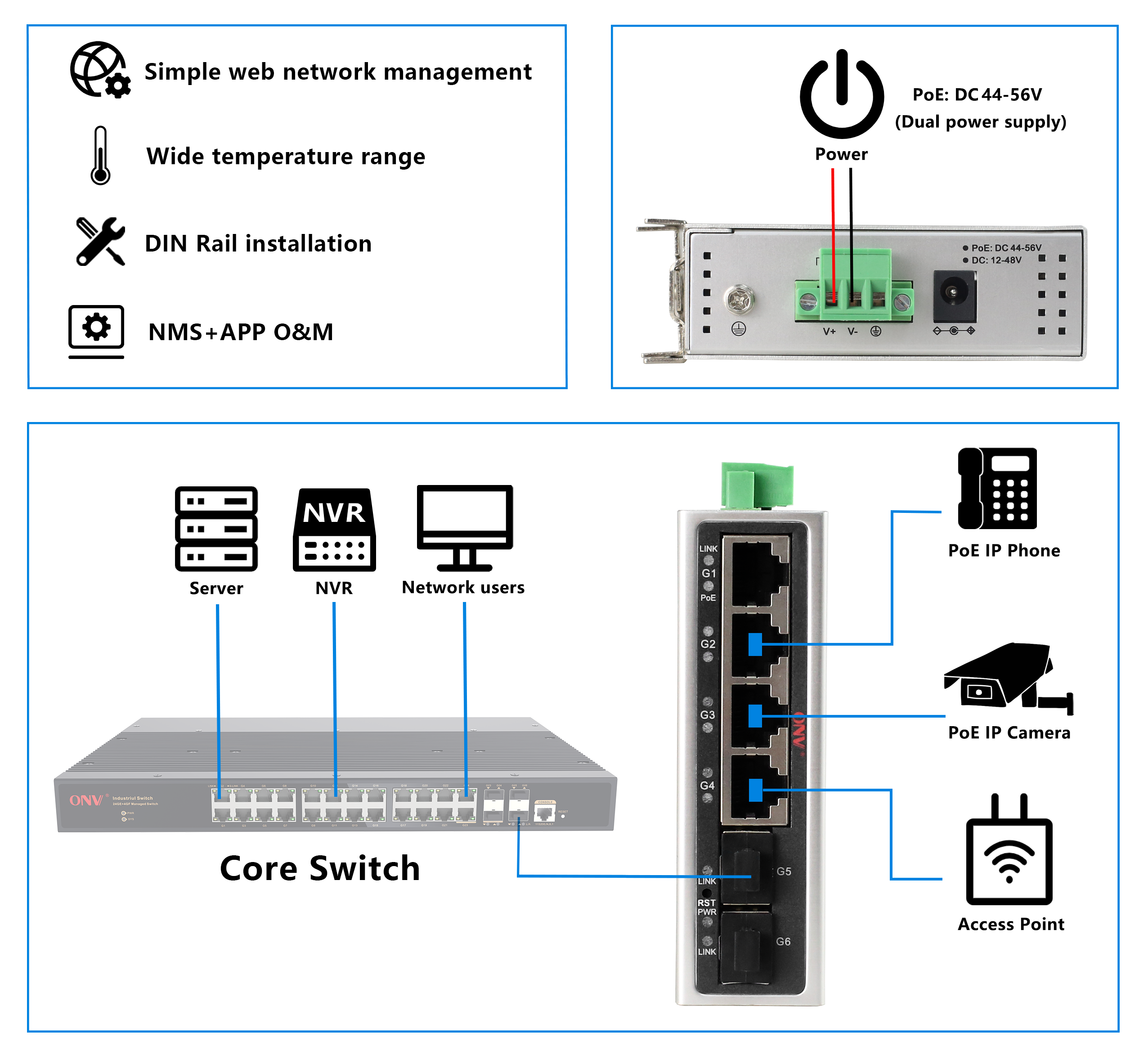

The ONV-IPS5064PFM supports the ONV-NMS management cloud platform and mobile APP for operation and maintenance management, enabling network topology management, link aggregation, port management, PoE management, remote operation and maintenance, etc. It has high reliability, easy installation and maintenance, a fast switching function, and multiple access ports, suitable for access to LAN devices of various sizes.
FEATURE
Gigabit access, uplink SFP fiber port
◇ Supports non-blocking wire-speed forwarding.
◇ Supports full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ Supports Gigabit RJ45 port and SFP port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Smart PoE power supply
◇ Complies with IEEE802.3af/at PoE standard, automatically identifies PoE devices for power supply, and does not damage non-PoE devices.
◇ Supports remote PoE management function, enabling remote power on/off of PoE ports, checking port power status, querying PoE port faults, etc.
◇ 4*10/100/1000Base-T RJ45 ports can support PoE power to meet the needs of security monitoring, teleconferencing systems, wireless coverage, and other scenarios.
Minimalist application
◇ Supports remote upgrades, remote reboots, and factory resets.
◇ Supports real-time fault alarms, fault location, and automatic work order dispatch.
◇ Web network management functions: QoS, link aggregation, ring network management, port mirroring, port control, and bandwidth management.
◇ Cloud platform + mobile APP operation and maintenance management, providing visualized PoE power supply control, network topology management, and VLAN segmentation.
◇ It abandons complex network management configurations, retaining only practical network management functions, enabling rapid network deployment and centralized operation and maintenance through the operation and maintenance platform.
Stable and reliable
◇ CE, FCC, RoHS.

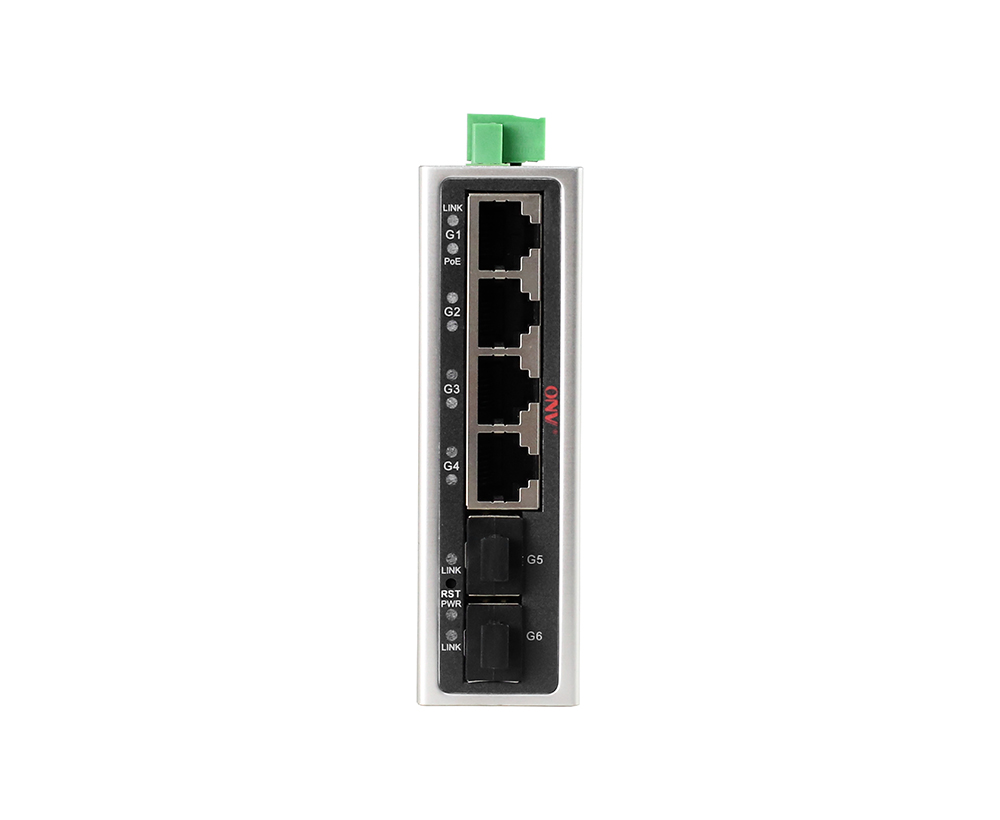

◇ The user-friendly panel can show the device status through the LED indicators of PWR, SYS, Link, and PoE.
◇ Low power consumption, aluminum alloy housing, and excellent heat dissipation ensure the stable operation of the switch.

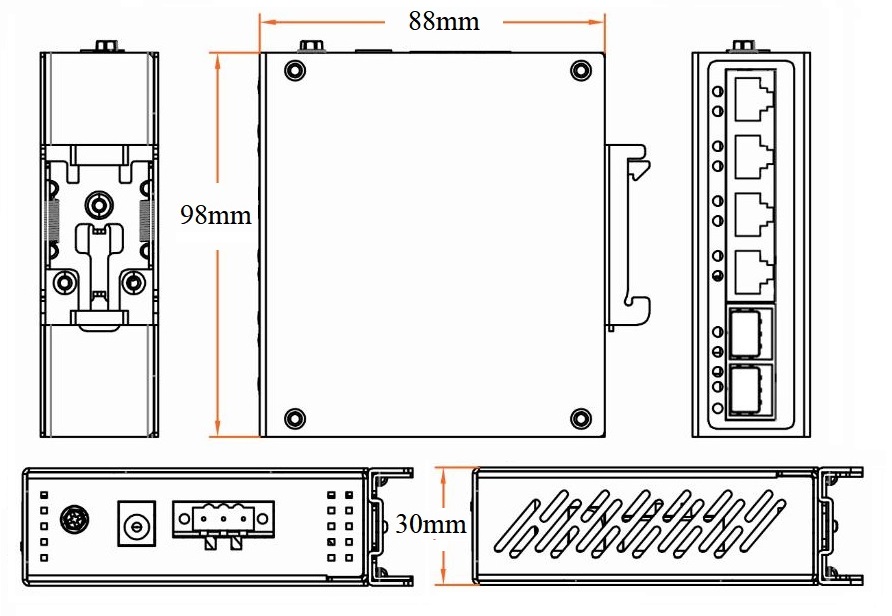

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Recommended Power Supply |
|
ONV-IPS5064PFM |
Easy managed industrial PoE switch with 2*100/1000M uplink SFP fiber ports and 4*10/100/1000M RJ45 ports. Ports 1-4 support the IEEE 802.3af/at PoE standard. It supports dual DC power inputs (DC power jack and 3P Phoenix terminal connection) and DIN rail mounting. |
60W/120W |
|
Note: The optical module and power supply are not included and need to be purchased. |
||
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
6-port Gigabit Easy managed industrial PoE switch |
1 |
PC |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card and Certificate of Conformity |
1 |
PC |
OPTICAL MODULE
|
Product |
Model |
Description |
Unit |
|
1.25G Optical Module |
2630-G |
Industrial optical module, 1.25G multi-mode dual-fiber 850nm, transmission distance: 550m, LC interface. Supports DDM function and hot-plugging. |
PC |
|
2632-G |
Industrial optical module, 1.25G single-mode dual-fiber 1310nm, transmission distance: 20km, LC interface. Supports DDM function and hot-plugging. |
PC |
|
|
2612-T-G |
Industrial optical module, 1.25G single-mode single-fiber TX1310nm/ RX1550nm, transmission distance: 20km, LC interface. Supports DDM function and hot-plugging. |
PC |
|
|
2613-R-G |
Industrial optical module, 1.25G single-mode single-fiber TX1550nm/ RX1310nm, transmission distance: 20km, LC interface. Supports DDM function and hot-plugging. |
PC |
POWER SUPPLY
|
Product |
Model |
Description |
Unit |
|
60W DIN Rail industrial power supply |
GWS-DP60-48 |
DIN Rail 60W single-set output power supply Input voltage: AC100V~240V 50-60Hz, 1.0A Output voltage: DC48V, 1.25A Operation temperature: -40℃ to +70℃ |
PC |
|
120W DIN Rail industrial power supply |
GWS-DP120-48 |
DIN Rail 120W single-set output power supply Input voltage: AC100V~240V 50-60Hz, 2.3A Output voltage: DC48V, 2.5A Operation temperature: -40℃ to +70℃ |
PC |
TECHNICAL SPECIFICATION
|
Model |
ONV-IPS5064PFM |
|
Interface Characteristics |
|
|
Fixed Port |
1*DC5521 power socket 2*100/1000Base-X uplink SFP fiber ports (Data) 4*10/100/1000Base-T PoE ports (Data/ Power) 1 set V+, V- (3P Phoenix terminal) DC power interface Dual power interfaces support reverse-connection protection |
|
Ethernet Port |
Ports 1-4 support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaptation |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP ( ≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
|
Optical Fiber Port |
Gigabit SFP fiber port, does not include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module, LC) |
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-550m, single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km. |
|
Chip Parameter |
|
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
|
Forwarding Mode |
Store and forward (Full wire-speed) |
|
Switching Capacity |
12Gbps (non-blocking) |
|
Forwarding Rate@64byte |
8.93Mpps |
|
MAC |
2K |
|
Buffer Memory |
2M |
|
Jumbo Frame |
9.2K |
|
LED Indicator |
Power/System: SYS (Green), Network: Link (Yellow), PoE: PoE (Red), Fiber port: L/A (Green) |
|
Reset Switch |
Press and hold for 6 seconds and release to restore the factory settings. Short press 2 times (1 second interval) to switch to the unmanaged state |
|
PoE& Power Supply |
|
|
PoE Port |
Port 1-4 |
|
PoE Management |
Port PoE output on/off, port PoE real-time power status viewing |
|
Power Supply Pin |
1/2 (+) 3/6 (-) |
|
Max Power Per Port |
30W, IEEE802.3af/at |
|
Power Consumption |
Standby<6W, Full load af<60W, at<120W |
|
Operation Voltage |
DC44-56V |
|
Power Supply |
No, optional 48V/60W or 48V/120W industrial power supply |
|
Physical Parameter |
|
|
Operation Temp/ Humidity |
-40~+75°C, 5%~90% RH non-condensing |
|
Storage Temp/ Humidity |
-40~+85°C, 5%~95% RH non-condensing |
|
Dimension (L*W*H) |
98*88*30mm |
|
Net /Gross Weight |
0.25kg/ 0.35kg |
|
Installation |
Desktop, 35mm DIN Rail |
|
Certification& Warranty |
|
|
Lightning Protection |
IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class A IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnetic field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV Protection level: IP30, Lightning protection: 6KV 8/20us IEC61000-4-4(EFT): Power cable: ±4 kV, data cable: ±2 kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150 kHz- 80 MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV |
|
Mechanical Properties |
IEC 60068-2-6 (Anti vibration), IEC 60068-2-32 (Free fall), IEC 60068-2-27 (Anti shock) |
|
Certification |
CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS |
|
Warranty |
5 years, lifelong maintenance. |
|
Network Management Feature |
|
|
Interface |
EEE Energy-saving and green Ethernet function Port traffic statistics, IEEE802.3x flow control (Full-duplex) Port status display, Port duplex/ negotiation rate configuration |
|
VLAN |
Port-based IEEE802.1Q VLAN configuration (4K) |
|
Port Aggregation |
Static aggregation |
|
Loop Protection |
Loop protection function |
|
Multicast |
IGMP Snooping v1/v2, Max 256 multicast groups |
|
Port Mirroring |
Bidirectional data mirroring based on port |
|
QoS |
Diff-Serv QoS, 8*Output queues of each port |
|
Security |
Broadcast storm control, Port isolation, Port speed limit |
|
DHCP |
DHCP Snooping |
|
Management |
Cable status check, Web-based network management One-click restore, Mobile APP maintenance management ONV-NMS platform management (Cloud platform) |
|
System |
Web browser: Mozilla Firefox 2.5 or later, Google Chrome 42 or later TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) are installed on each computer in the network using Category 5 or higher Ethernet cables |
