OVERVIEW

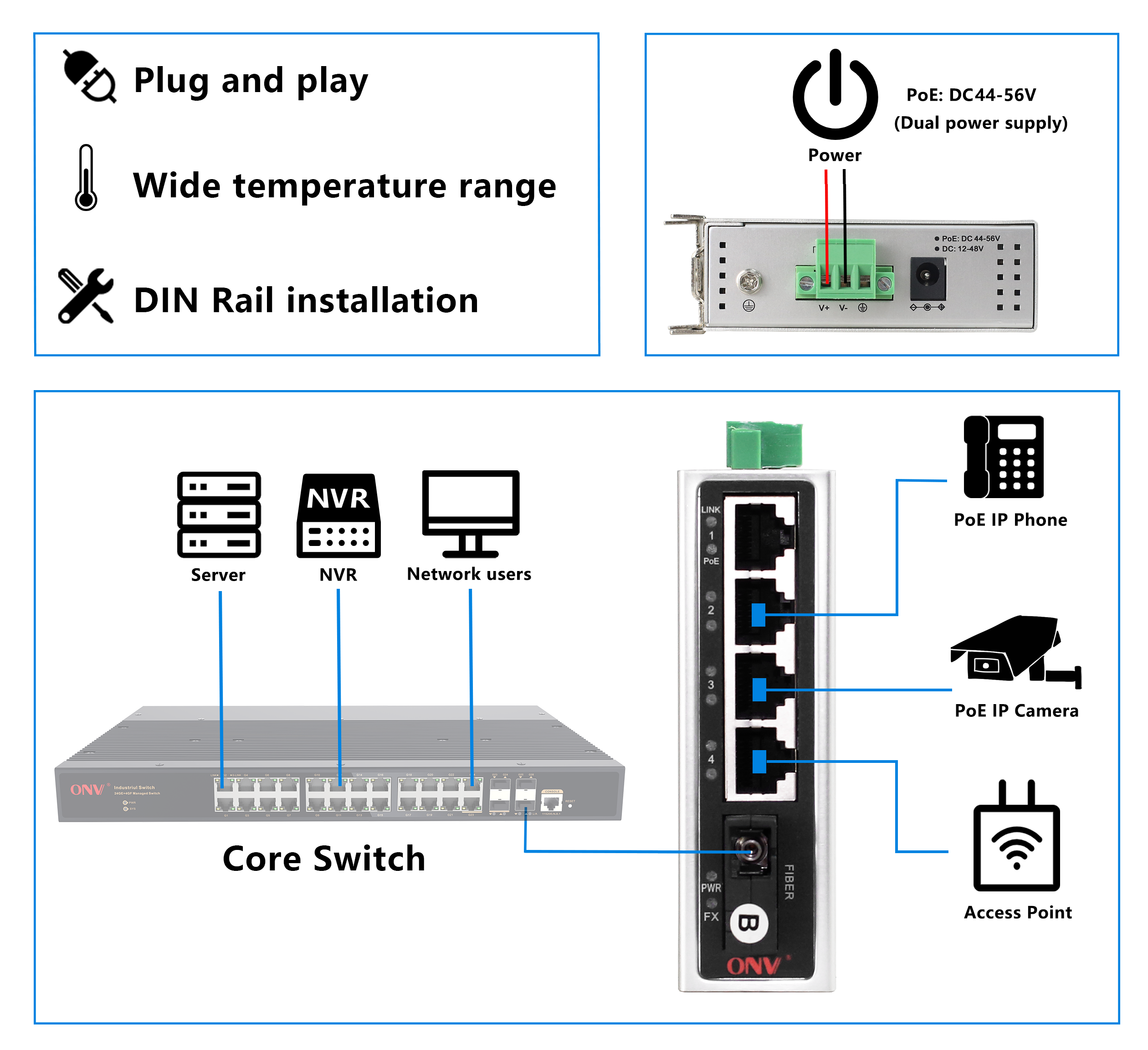

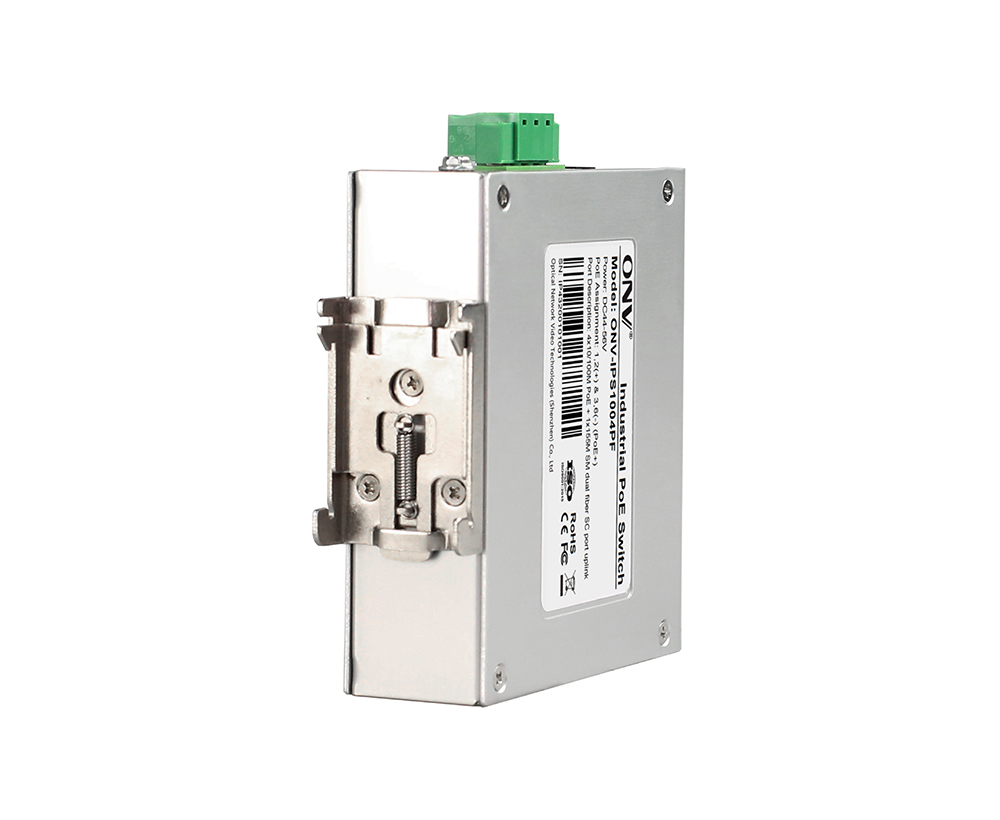

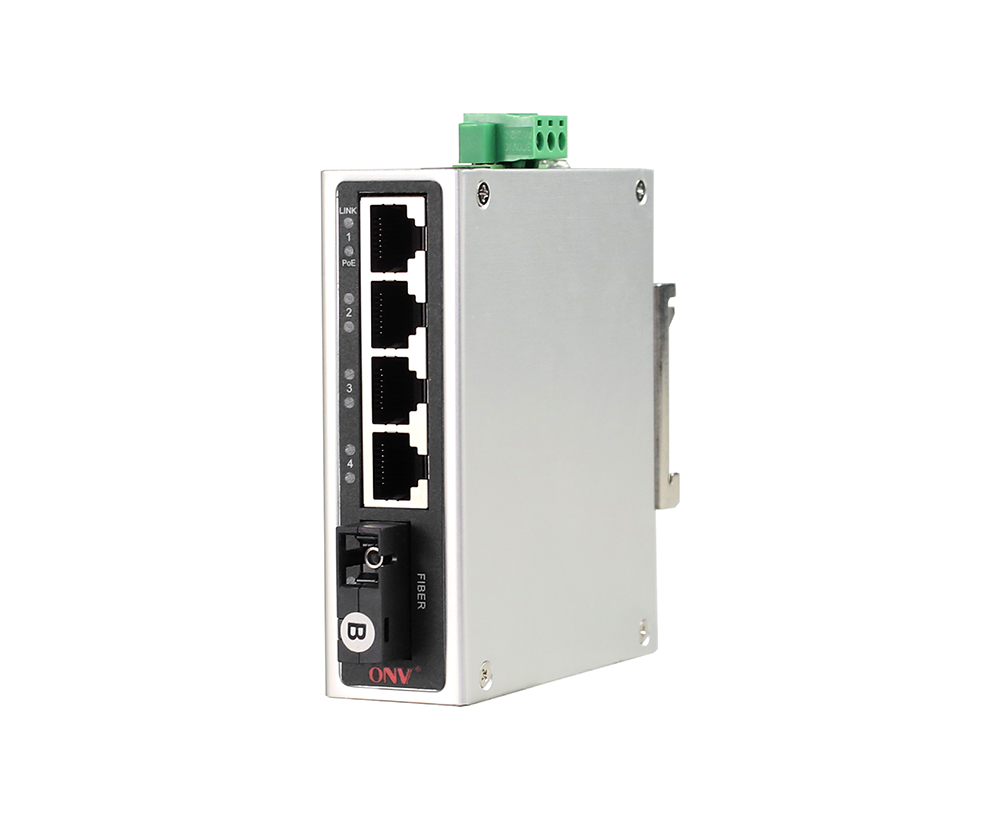

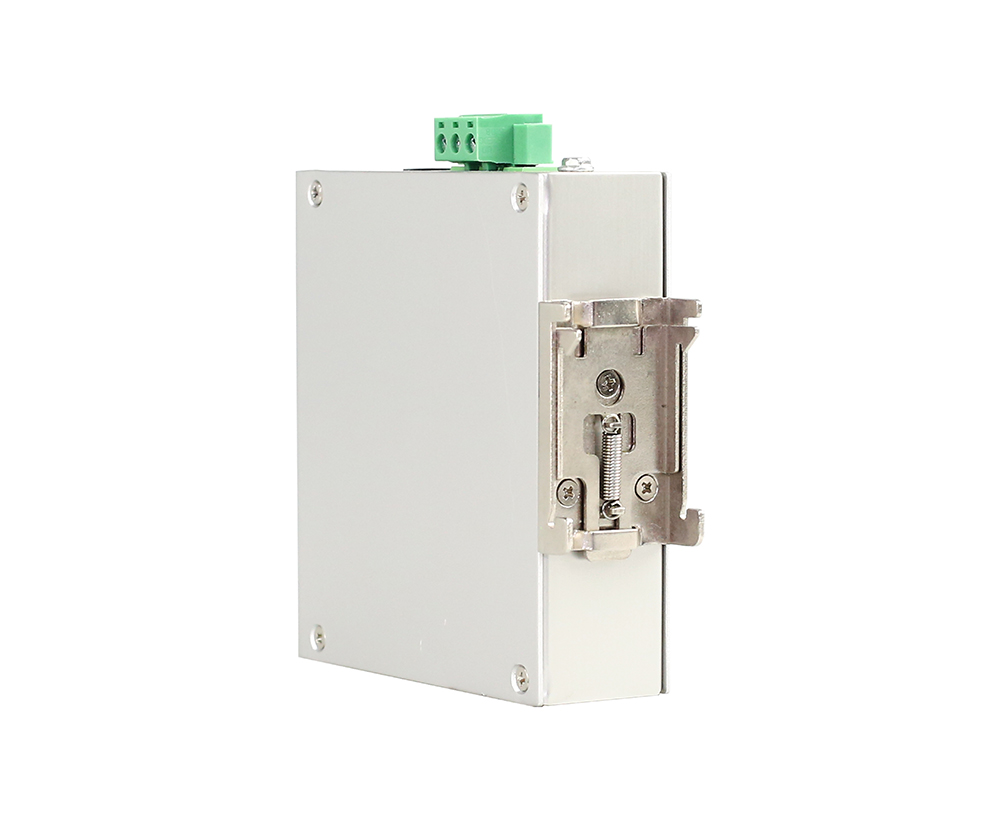

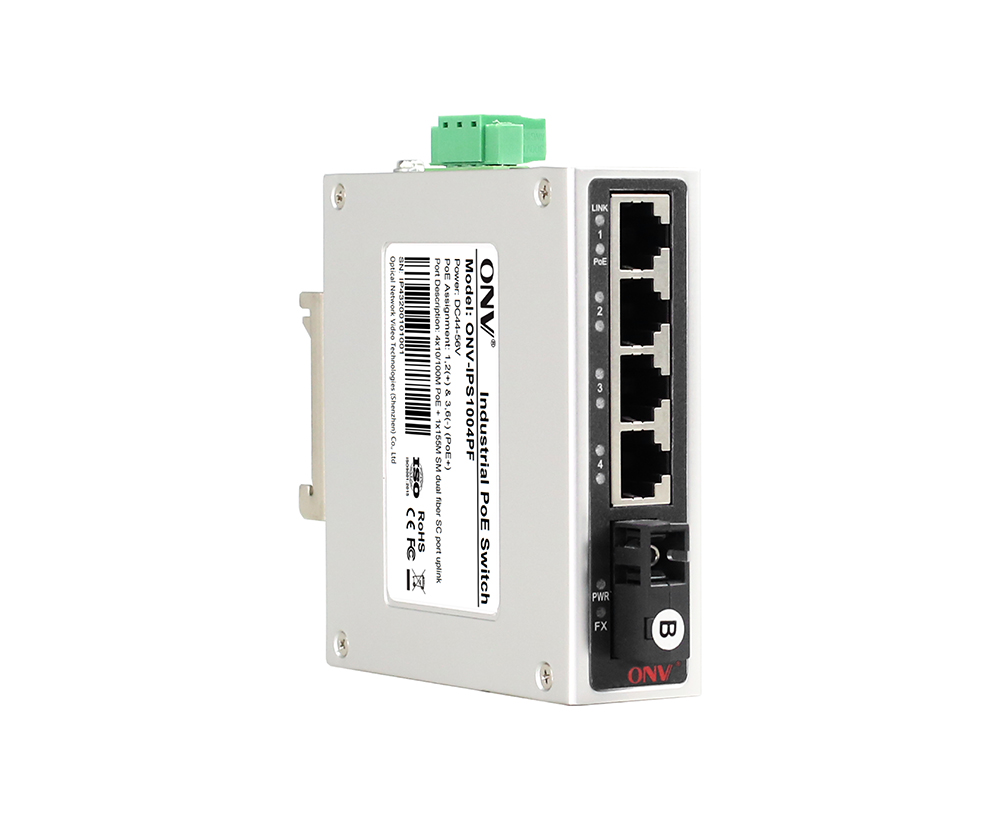

The ONV-IPS1004PF is a 10/100M industrial PoE fiber switch independently developed by ONV. It has 4*10/100M RJ45 ports and 1*155M uplink SC fiber port. Port 1-4 can support IEEE 802.3 af/at PoE standard, and single-port PoE power up to 30W. A PoE power supply device can automatically detect and recognize the power-receiving equipment that meets the standard and supplies power through the network cable. It can supply power to PoE terminal equipment such as wireless AP, IP cameras, VoIP phones, and industrial sensors through network cables, and meet the network environment that needs a high-density PoE power supply. It is suitable for intelligent transportation, rail transit, electric power, mining, metallurgy and green energy, and industrial scenes such as construction to set up a cost-effective and stable communication network. Unmanaged mode, plug and play, no configuration, easy to use.
FEATURE
10/100M TP/SC port, fast Ethernet
◇ Support non-blocking wire speed forwarding
◇ Support full duplex based on IEEE802.3x and half duplex based on Backpressure
◇ Support 10/100M RJ45 port and 155M SC fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Smart PoE power supply
◇ IEEE 802.3 af/at PoE standard, without damaging non-PoE devices.
◇ 4*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
Stable and reliable
◇ CCC, CE, FCC, RoHS.

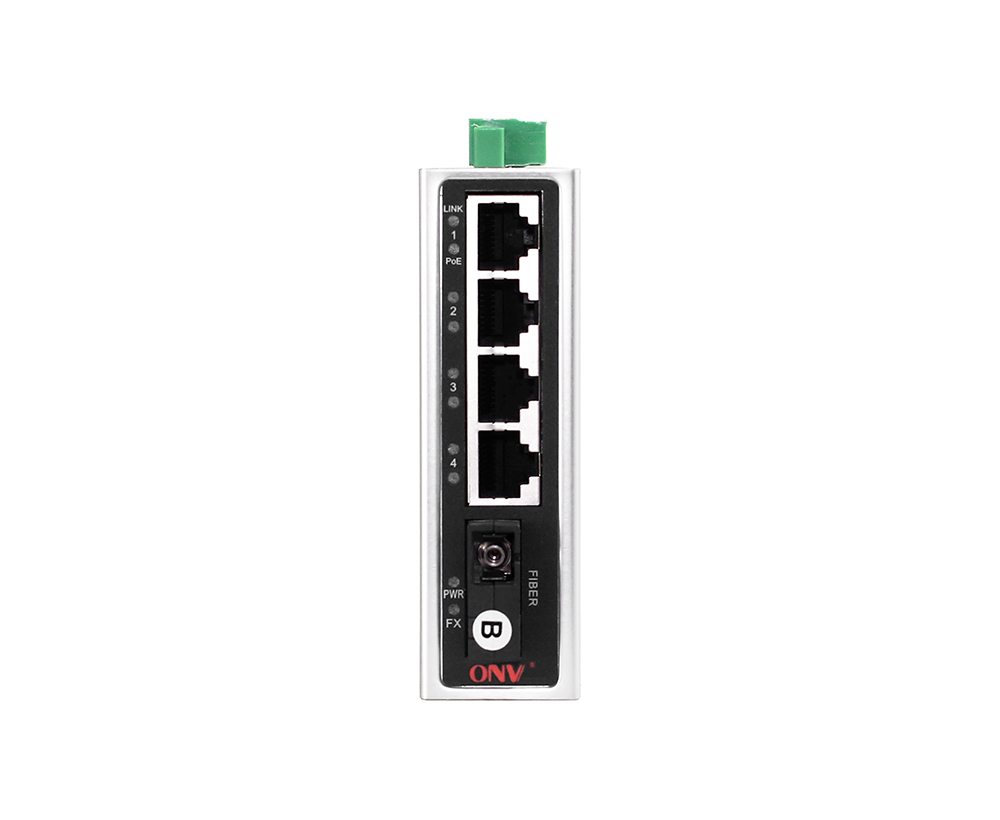

◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link, and PoE.
◇ Low power consumption, no fan, aluminum shell, excellent heat dissipation to ensure the stable operation of the switch.
DIMENSION
ORDERING INFORMATION
Model |
Description |
Recommended Power Supply |
ONV-IPS1004PF |
Unmanaged industrial PoE fiber switch with 4*10/100M RJ45 ports and 1*155M uplink SC port (1310nm/20km single-mode dual fiber optical module). Port 1-4 can support IEEE 802.3 af/at PoE standard. It can support DC redundant power supply input and DIN rail mounting. |
60W/120W |
ONV-IPS1004PF-A |
Unmanaged industrial PoE fiber switch with 4*10/100M RJ45 ports and 1*155M uplink SC port (1310nm/20km single-mode single fiber optical module). Port 1-4 can support IEEE 802.3 af/at PoE standard. It can support DC redundant power supply input and DIN rail mounting. |
60W/120W |
ONV-IPS1004PF-B |
Unmanaged industrial PoE fiber switch with 4*10/100M PoE ports and 1*155M uplink SC port (1550nm/20km single-mode single fiber optical module). Port 1-4 can support IEEE 802.3 af/at PoE standard. It can support DC redundant power supply input and DIN rail mounting. |
60W/120W |
Note: The power supply is not included, and needs to be purchased. |
PACKING LIST
Packing List |
Content |
Qty |
Unit |
5-port 10/100M industrial PoE fiber switch |
1 |
SET |
|
User Guide |
1 |
PC |
|
Warranty Card |
1 |
PC |
POWER SUPPLY
Product |
Model |
Description |
Unit |
65W Desktop Power Adapter |
GWS-AP65-52 |
Desktop 65W single set of output power adapter Input Voltage: AC100V~240V 50-60Hz, 1.1A Output Voltage: DC52V, 1.25A Operation Temperature: -20℃ to +65℃ |
PC |
110W Desktop Power Adapter |
GWS-AP110-52 |
Desktop 110W single set of output power adapter Input Voltage: AC100V~240V 50-60Hz, 2.0A Output Voltage: DC52V, 2.0A Operation Temperature: -20℃ to +65℃ |
PC |
60W DIN Rail Industrial Power Supply |
GWS-DP60-48 |
DIN Rail type 60W single set of output power supply Input Voltage: AC100V~240V 50-60Hz, 1.0A Output Voltage: DC48V, 1.25A Operation Temperature: -40℃ to +70℃ |
PC |
120W DIN Rail Industrial Power Supply |
GWS-DP120-48 |
DIN Rail type 120W single set of output power supply Input Voltage: AC100V~240V 50-60Hz, 1.5A Output Voltage: DC48V, 2.5A Operation Temperature: -40℃ to +70℃ |
PC |
TECHNICAL SPECIFICATION
Model |
ONV-IPS1004PF |
Interface Characteristics |
|
Fixed Port |
1*DC5521 power socket 1*155M uplink SC fiber port (Data) 4*10/100Base-T PoE ports (Data /Power) 2 groud of V+, V- redundant DC power interface (3P Phoenix terminal) |
Ethernet Port |
Port 1-4 support 10/100Base-TX auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5e or later UTP (≤100 meters) |
SC Slot Port |
Default optical module is single-mode dual fiber 20km, SC interface |
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-550m, 1310nm/ 0-2km Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km. |
Chip Parameter |
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3u 100Base-FX, IIEEE802.3x |
Forwarding Mode |
Store and Forward (Full Wire Speed) |
Switching Capacity |
1.0Gbps (Non-blocking) |
Forwarding Rate@64byte |
0.744Mpps |
MAC |
2K |
Buffer Memory |
512Kb |
Jumbo Frame |
2048B |
LED Indicator |
Power: PWR (Green), Network: Link (Green), Fiber port: FX (Green) |
PoE & Power Supply |
|
PoE Port |
Port 1 to 4 |
Power Supply Pin |
1/2(+) 3/6(-) |
Max Power Per Port |
30W, IEEE 802.3 af/at |
Power Consumption |
Standby<3W, Full load<60W |
Working Voltage |
DC44-56V, 3P industrial phoenix terminal, anti-reverse protection. |
Power Supply |
No, optional 60W/48V or 120W/48V industrial power supply |
Physical Parameter |
|
Operation TEMP/ Humidity |
-40~+75°C, 5%~90% RH Non condensing |
Storage TEMP/ Humidity |
-40~+85°C, 5%~95% RH Non condensing |
Dimension (L*W*H) |
98*88*30mm |
Net /Gross Weight |
<0.2kg / <0.3kg |
Installation |
Desktop, DIN Rail |
Certification & Warranty |
|
Lightning Protection |
Protection level: IP30 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV |
Mechanical Properties |
IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock) |
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
Warranty |
5 years, lifelong maintenance. |
