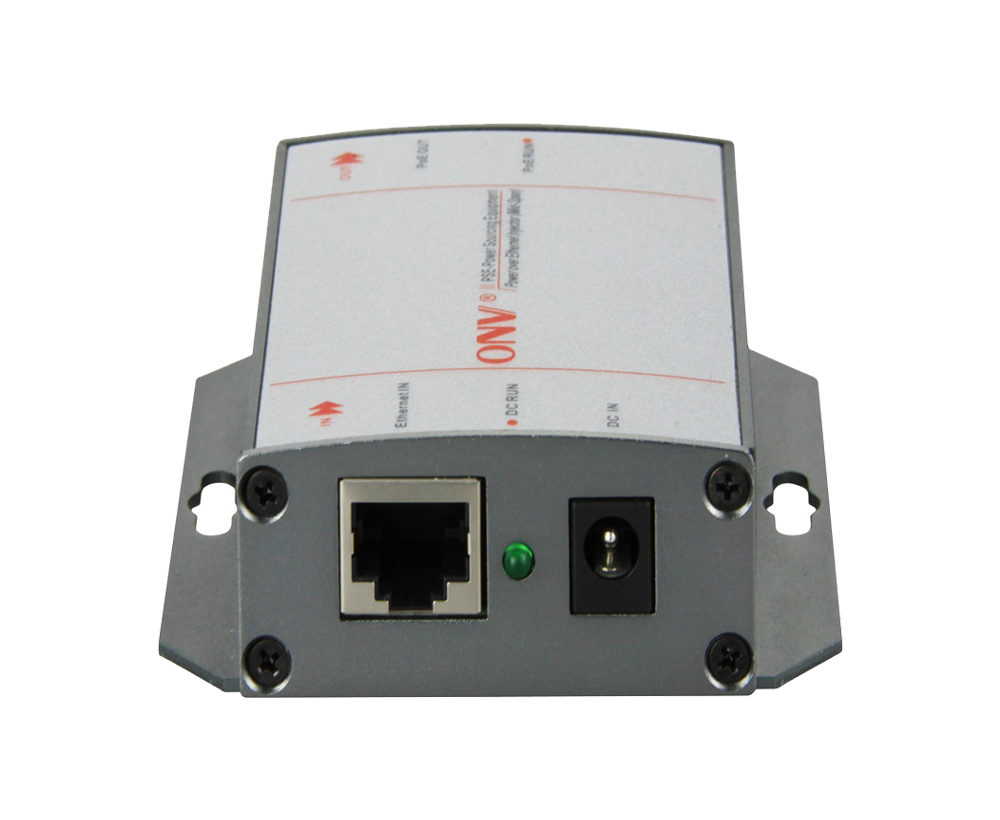

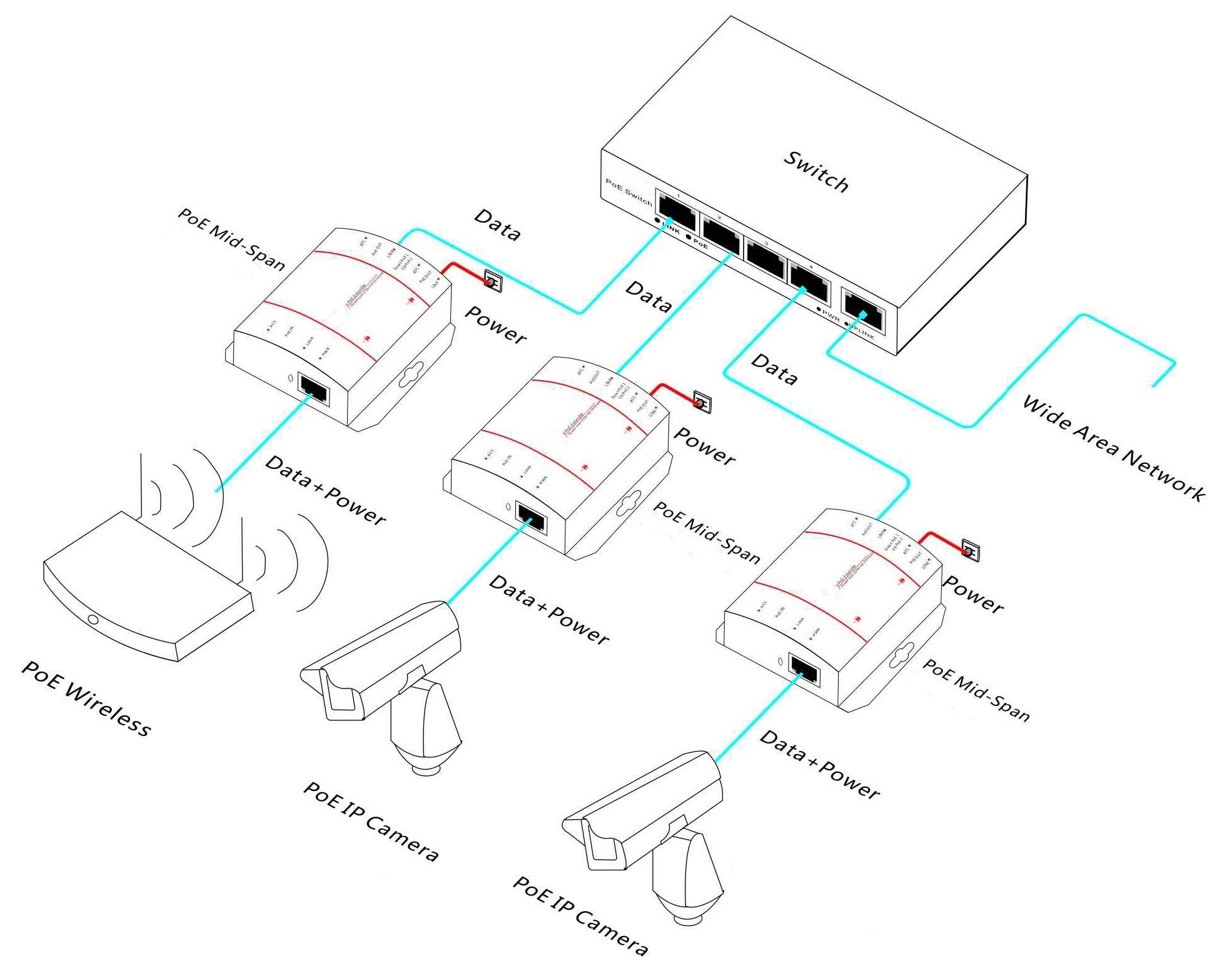

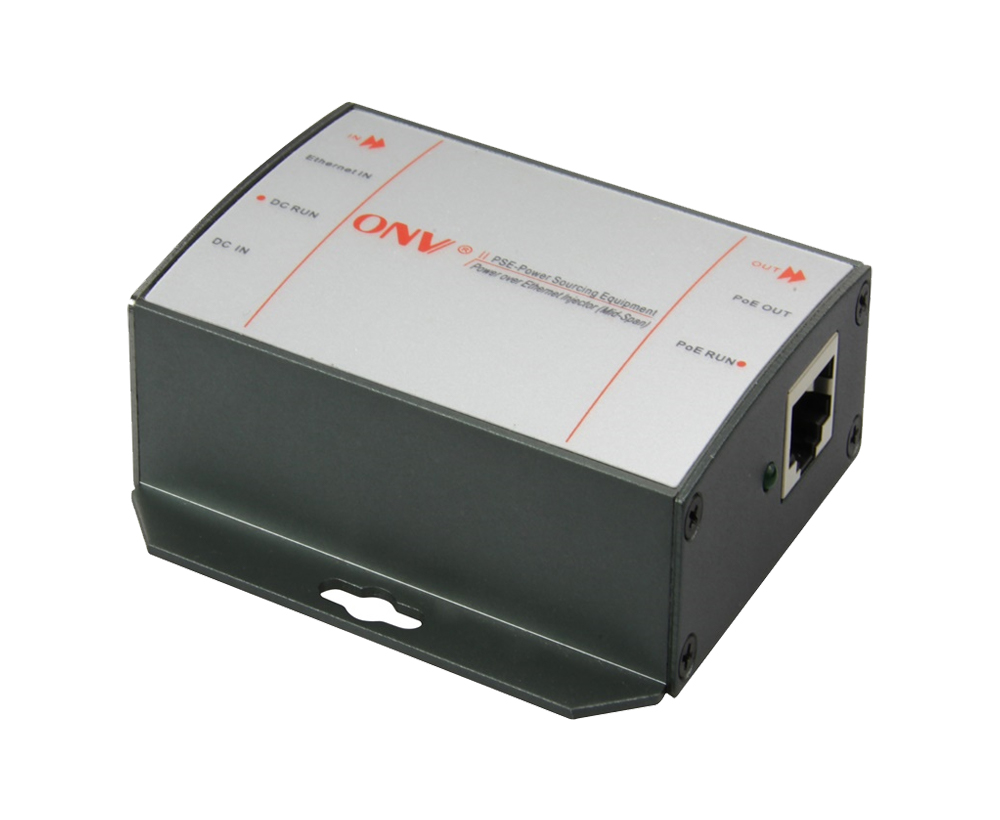

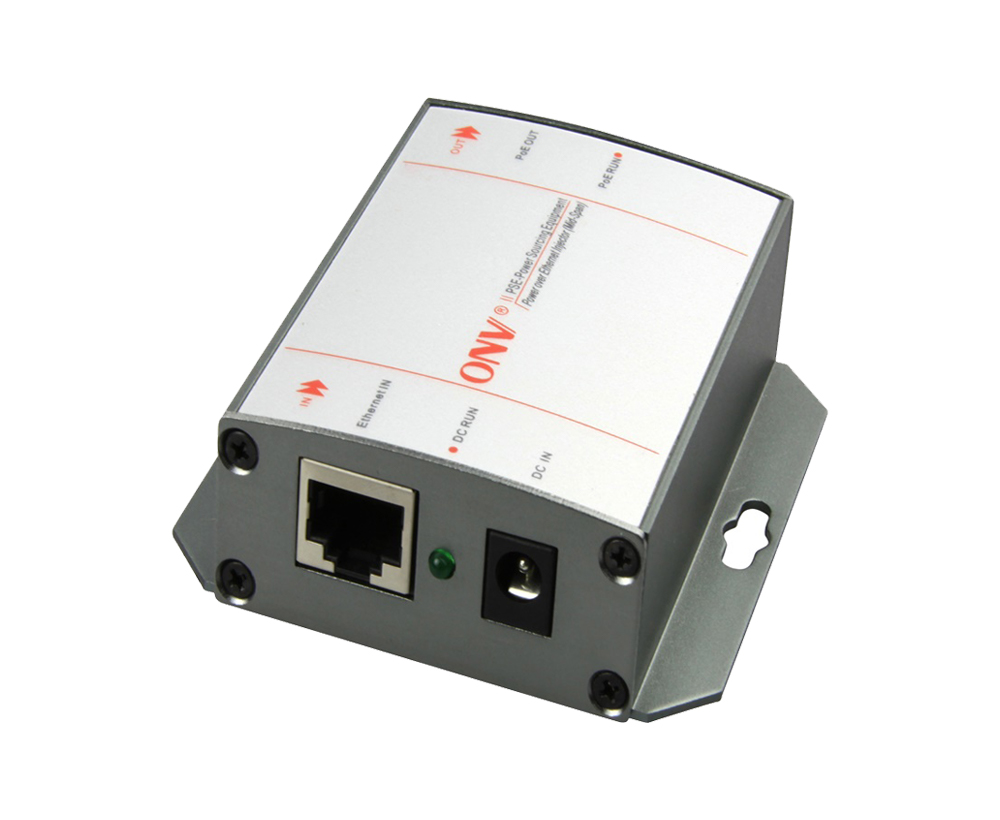

The ONV-PSE3101DC is a 10/100M PoE injector independently developed by ONV. It has 2*10/100/1000M RJ45 ports. Port 1 supports IEEE802.3af/at PoE standards, and the single-port PoE power reaches 30W. As a PoE power supply device, it can automatically detect and recognize power-receiving equipment that meets the standard and supply power over the network cable. It can supply power to PoE terminal equipment such as wireless AP, IP camera, VoIP, and visual intelligent building intercom through the network cable, and meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises. Plug and play, no configuration, easy to use.
FEATURE
10/100M access (1 input and 1 output)
◇ Support non-blocking wire-speed forwarding.
◇ Using 1 Ethernet in and 1 Ethernet out connection mode, 1*10/100M RJ45 port, convenient connection, and simple maintenance.
Smart PoE power supply
◇ IEEE802.3af/at PoE standard, without damaging non-PoE devices.
◇ 1*10/100Base-TX RJ45 port supports PoE power, meeting the needs of security monitoring, teleconferencing systems, wireless coverage, and other scenarios.
Stable and reliable
◇ CE, FCC, RoHS.
◇ Support desktop and wall-mounted installation.
◇ Plug and play, no configuration, simple and convenient.
◇ The user-friendly panel can show the device status through the LED indicators of PWR and PoE.
◇ Self-developed power supply, high redundancy design, providing a long-term and stable PoE power output.
◇ Low power consumption, active fan cooling design, and metal casing to ensure stable operation of the product.

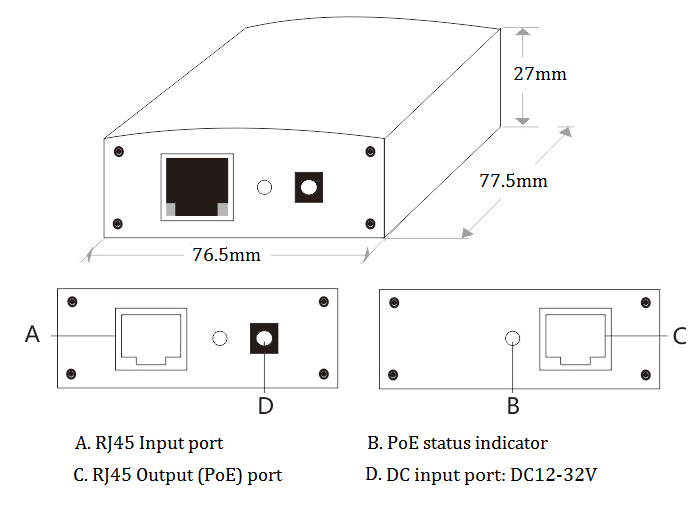

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
External Power Adapter |
|
ONV-PSE3101DC |
10/100M PoE injector supports the IEEE 802.3 af/at PoE standard and PoE output. It supports desktop and wall-mounted installation. |
18W |
|
ONV-PSE3101DC-at |
35W |
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
2-port 10/100M PoE injector |
1 |
PC |
|
|
Power Adapter |
1 |
PC |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card and Certificate of Conformity |
1 |
PC |
|
Model |
ONV-PSE3101DC |
ONV-PSE3101DC-at |
|
Interface Characteristics |
||
|
Fixed Port |
1*10/100M PoE port (Data/Power) 1*10/100M uplink RJ45 port (Data) |
|
|
Ethernet Port |
10/100Base-TX auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) |
|
|
Network Protocol &Indicator |
||
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3 |
|
|
LED Indicator |
Power: PWR (Green), POE: PoE (Green) |
|
|
PoE& Power Supply |
||
|
PoE Port |
Port 1 IEEE 802.3af/at |
|
|
Power Supply Pin |
1/2(+), 3/6(-) |
|
|
Max Power Per Port |
15W, IEEE802.3af |
30W, IEEE802.3at |
|
Total PWR/ Input Voltage |
18W/12-32VDC |
35W/12-32VDC |
|
<24V max output 15W, ≥24V max output 30W |
||
|
Power Consumption |
Standby<3W, full load<15W |
Standby<3W, full load<30W |
|
Power Supply |
External power supply, DC input voltage: 24V |
|
|
Physical Parameter |
||
|
Operation TEMP/ Humidity |
-20°C~+55°C, 5%~90% RH non-condensing |
|
|
Storage TEMP/ Humidity |
-40°C~+80°C, 5%~95% RH non-condensing |
|
|
Dimension (L*W*H) |
77.5*76.5*27mm |
|
|
Net /Gross Weight |
0.15kg /0.3kg |
0.15kg /0.4kg |
|
Installation |
Desktop, Wall-mounted |
|
|
Certification& Warranty |
||
|
Lightning Protection |
4KV 8/20us, Protection level: IP30 |
|
|
Certification |
CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS |
|
|
Warranty |
3 years, lifelong maintenance |
|
