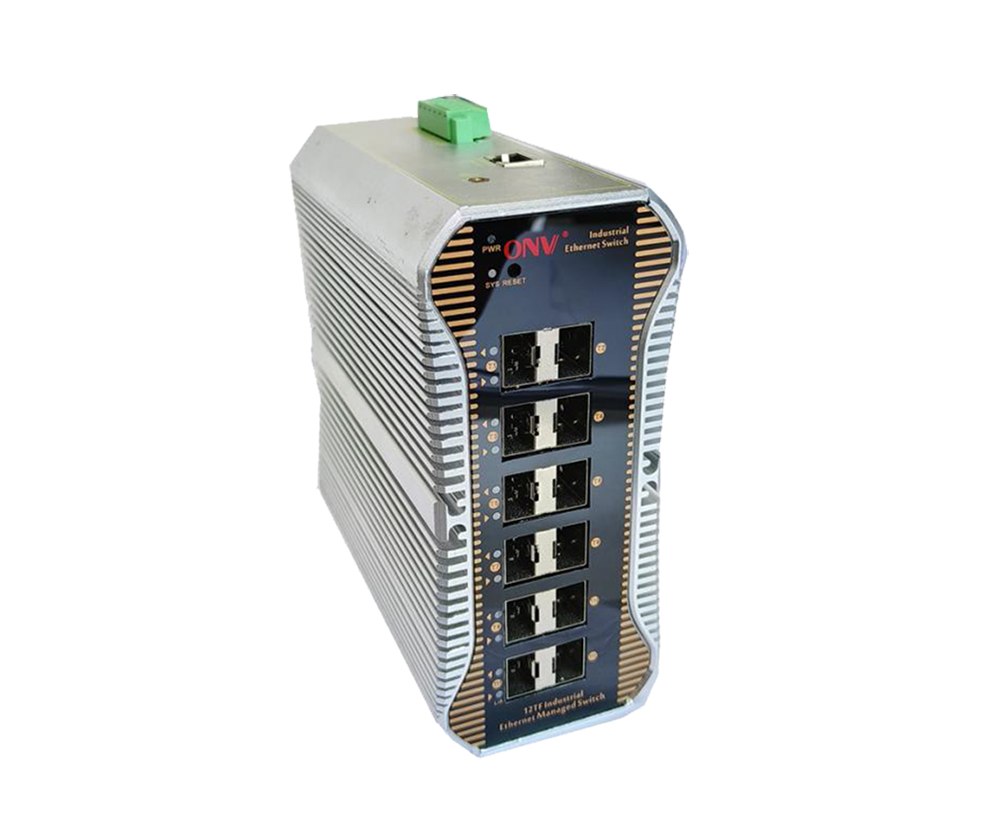

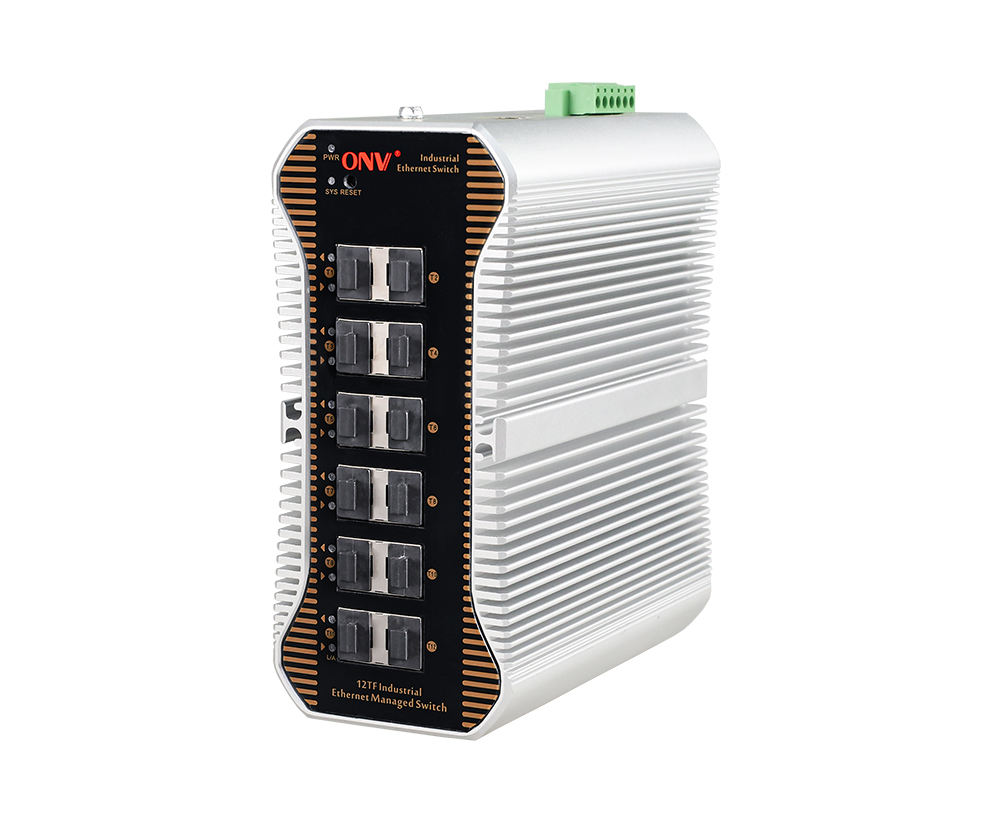

The ONV-IPS56012FM is a 10G managed industrial Ethernet fiber switch independently developed by ONV. It has 12*1/10G SFP+ fiber ports. Each port supports wire-speed forwarding.
The ONV-IPS56012FM has L3 network management functions, supports IPV4/ IPV6 management, dynamic routing and forwarding, complete security protection mechanism, perfect ACL/QoS strategy, and rich VLAN functions for easy management and maintenance. Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-T G.8032) ERPS (<20ms) to improve link backup and network reliability. When a unidirectional network fails, communication can be quickly restored to ensure uninterrupted communication of important applications. Port management, routing address management, port flow control, VLAN division, IGMP, security strategy, and other application business configurations can be performed through Web, CLI, SNMP, Telnet, and other network management methods according to application needs. It has excellent adaptability to industrial field environments (including mechanical stability, climate environment adaptability, electromagnetic environment adaptability, etc.). It is suitable for industrial scenarios such as intelligent transportation, rail transportation, power industry, mining, petroleum, shipping, metallurgy, and green energy construction to form economical, efficient, stable, and reliable communication networks.
FEATURE
10G SFP+ fiber aggregation/access
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ 10G SFP+ fiber port suitable for aggregating and core switching large amounts of data, allowing users to network and meet the networking needs of various scenarios flexibly.
Strong business processing capability

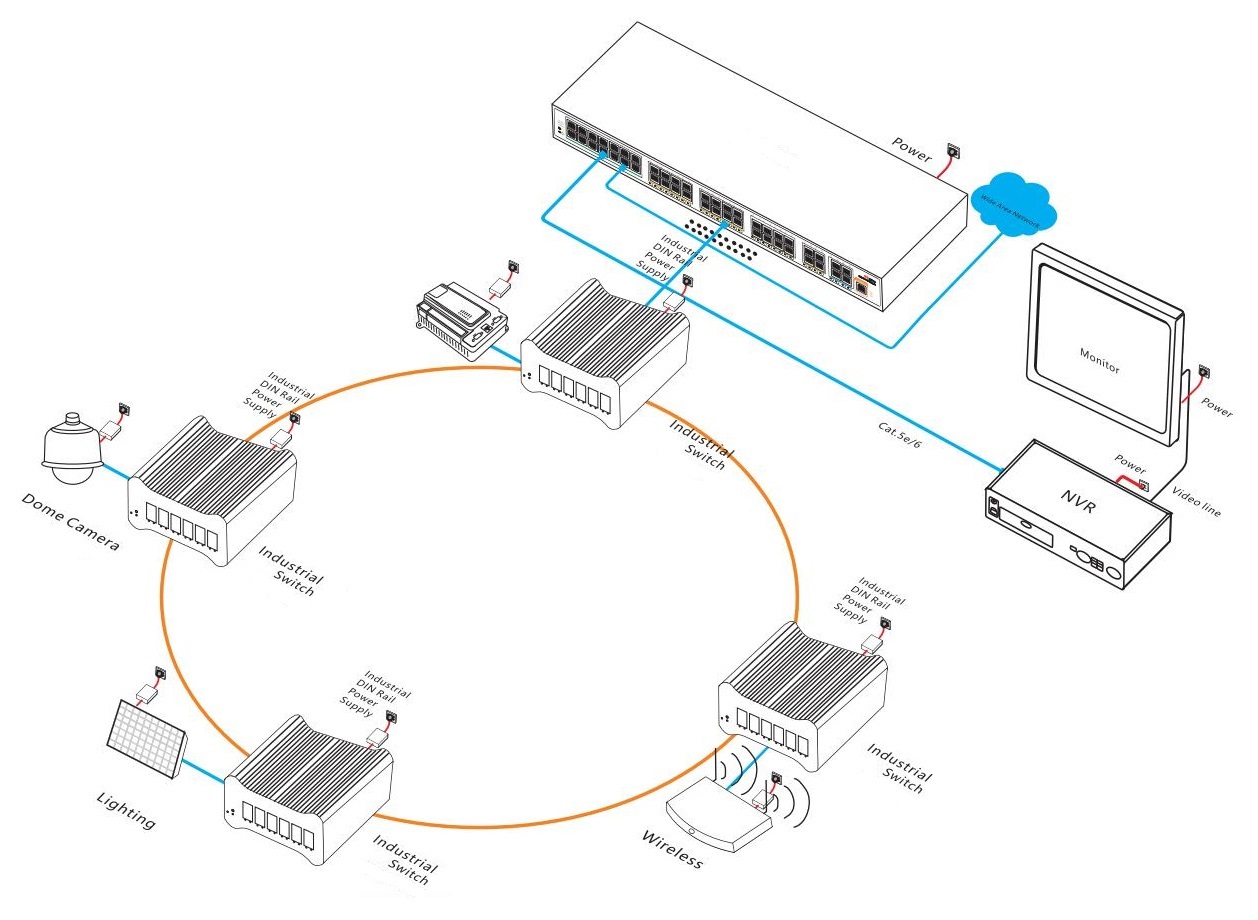

◇ Support ERPS ring network and STP/RSTP/MSTP to eliminate layer 2 loops and realize link backup.
◇ Support IEEE802.1Q VLAN, Users can flexibly divide VLAN, Voice VLAN, and QinQ configuration according to their needs.
◇ Support IGMP Snooping V1/V2/V3 multicast protocol to meet the high-definition video surveillance and video conference access requirements.
◇ Support static and dynamic aggregation to effectively increase link bandwidth, realize load balancing, link backup, and improve link reliability.
◇ Support QoS, port-based, 802.1P-based and DSCP-based three priority modes and four queue scheduling algorithms: Equ, SP, WRR, and SP+WRR.
◇ Support ACL to filter data packets by configuring matching rule processing operations and time permissions, and provide flexible security access control policies.
Security
◇ Support port+MAC binding, IP+MAC+port binding functions.
◇ Support port isolation and port broadcast storm suppression.
◇ 802.1X authentication provides authentication functions for LAN computers and controls the authorization status of controlled ports according to the authentication results.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, SYS, Link, and L/A.
◇ Low power consumption, aluminum alloy housing, and excellent heat dissipation to ensure the stable operation of the switch.
Easy O&M management
◇ Support CPU monitoring, memory monitoring, Ping detection, and cable length detection.
◇ Support RMON, system log, and port traffic statistics to facilitate network optimization and transformation.
◇ Support HTTPS, SSLV3, SSHV1/V2, and other encryption methods, making management more secure.
◇ Support LLDP to facilitate the network management system to query and judge the communication status of the link.
◇ Support Web network management, CLI command line (Console, Telnet), SNMP (V1/V2/V3), and other diversified management and maintenance.
ORDERING INFORMATION
|
Model |
Description |
Recommended Power Supply |
|
ONV-IPS56012FM |
L3 managed industrial Ethernet fiber switch with 12*1/10G uplink SFP+ fiber ports. It can support dual DC redundant power input (Phoenix terminal connection) and DIN rail mounting. |
24W/36W |
|
Note: The optical module and power supply are not included and need to be purchased. |
||
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
12-port 10G managed industrial Ethernet Fiber switch |
1 |
Set |
|
|
RJ45-DB9 Adapter Cable |
1 |
PC |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card and Certificate of Conformity |
1 |
PC |
OPTICAL MODULE
|
Product |
Model |
Description |
Unit |
|
1.25G Optical Module |
2630-G |
Industrial SFP optical module, 1.25G multi-mode dual fiber 850nm, transmission distance: 550m, LC interface. supports DDM function and hot plugging. |
PC |
|
2632-G |
Industrial SFP optical module, 1.25G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
2612-T-G |
Industrial SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
2613-R-G |
Industrial SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
2612-T-SC-G |
Industrial SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, SC interface. supports DDM function and hot plugging. |
PC |
|
|
2613-R-SC-G |
Industrial SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, SC interface. supports DDM function and hot plugging. |
PC |
|
|
10G Optical Module |
6630-G |
Industrial SFP+ optical module, 10G multi-mode dual fiber 850nm, transmission distance: 300m, LC interface. supports DDM function and hot plugging. |
PC |
|
7832-G |
Industrial SFP+ optical module, 10G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
7832-33-G |
Industrial SFP+ optical module, 10G single-mode single fiber TX1330nm/ RX1270nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
7832-27-G |
Industrial SFP+ optical module, 10G single-mode single fiber TX1270nm/ RX1330nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
POWER SUPPLY
|
Product |
Model |
Description |
Unit |
|
24W DIN Rail Industrial Power Supply |
GWS-DP24-24 |
DIN Rail 24W single set of output power supply Input Voltage: AC100V-240V 50-60Hz, 0.35A Output Voltage: DC24V, 1.0A Operation Temperature: -40℃ to 70℃ |
PC |
|
36W DIN Rail Industrial Power Supply |
GWS-DP36-24 |
DIN Rail 36W single set of output power supply Input Voltage: AC100V-240V 50-60Hz, 0.56A Output Voltage: DC24V, 1.5A Operation Temperature: -40℃ to 70℃ |
PC |
|
Model |
ONV-IPS56012FM |
|
Interface Characteristics |
|
|
Fixed Port |
1*Console port (115200, N, 8,1) Power failure alarm switch port (FAULT) 12*1/10G uplink SFP+ fiber ports (Data) 2*DC12-48V input ports (support reverse connection protection) |
|
Optical Fiber Port |
Default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC) |
|
Optical Fiber Port Expansion |
Turbo overclocking 2.5G optical module expansion and ring network |
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-550m(1G), 850nm/ 0-300m (10G), Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km |
|
Chip Parameter |
|
|
Network Management Type |
L3 |
|
Network Protocol |
IEEE 802.3z 1000Base-X, IEEE 802.3ae 10GBase-SR/LR, IEEE 802.3x |
|
Forwarding Mode |
Store and forward (Full wire speed) |
|
Switching Capacity |
240Gbps (non-blocking) |
|
Forwarding Rate@64byte |
178.56Mpps |
|
CPU (Hz) |
Dual Core 1G |
|
DRAM |
2G |
|
FLASH |
256M |
|
MAC |
32K |
|
Buffer Memory |
16M |
|
Jumbo Frame |
12K |
|
LED Indicator |
Power: PWR (Green), System: SYS (Green), Fiber port: L/A (Green) |
|
Reset Switch |
Yes, press and hold the switch for 10 seconds and release it to restore the factory settings |
|
Power Supply |
|
|
Power Consumption |
Standby<13W, full load<20W |
|
Working Voltage |
DC12-48V, 6 Pin industrial Phoenix terminal, support anti-reverse protection. |
|
Power Supply |
No, optional 24V/24W or 24V/36W industrial power supply |
|
Physical Parameter |
|
|
Operation Temp/ Humidity |
-40~75°C, 5%~90% RH non condensing |
|
Storage Temp/ Humidity |
-40~80°C, 5%~95% RH non condensing |
|

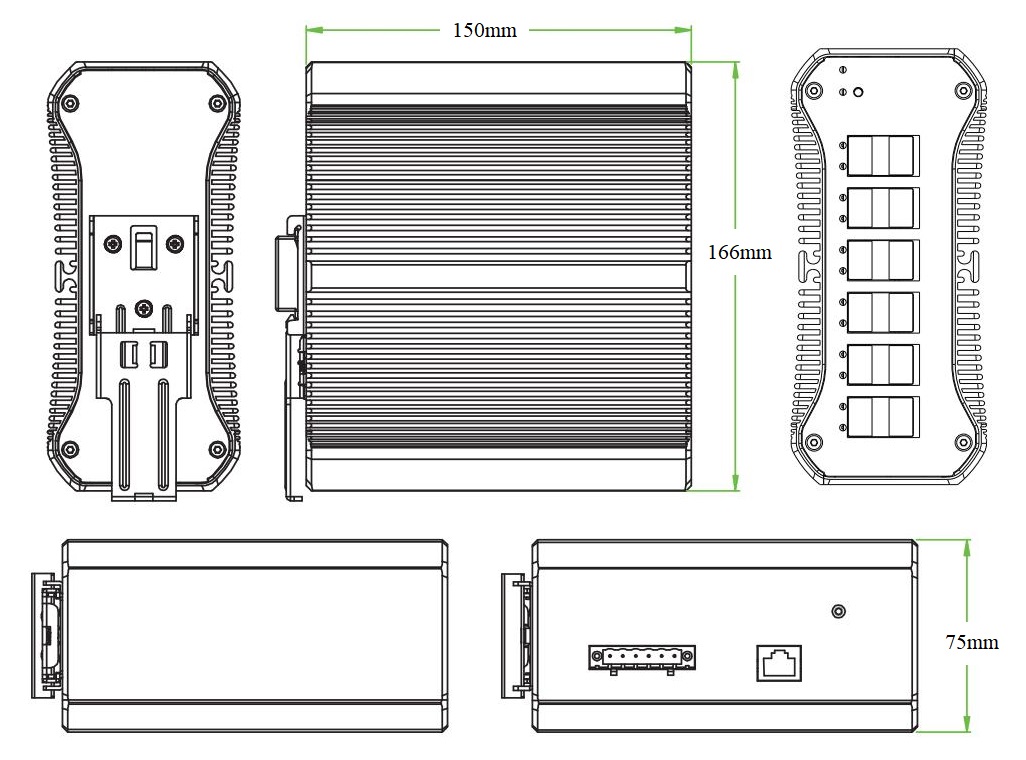

Dimension (L*W*H) |
166*150*75mm |
|
Net /Gross Weight |
1.8kg/ 2.1kg |
|
Installation |

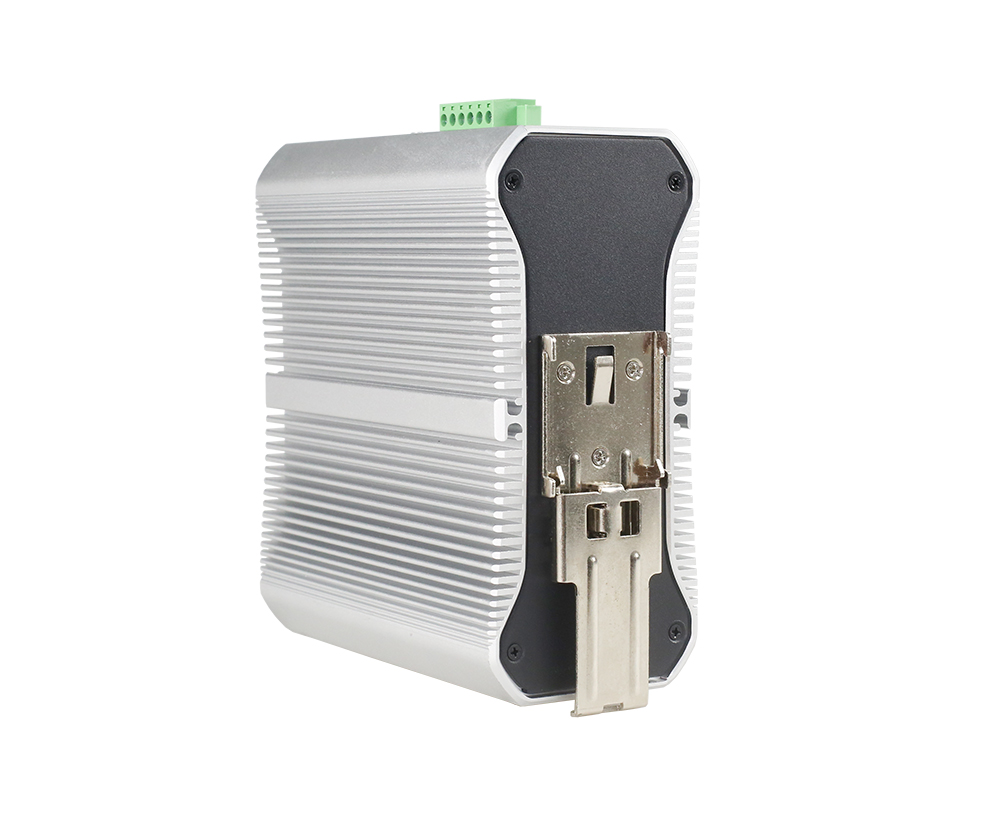

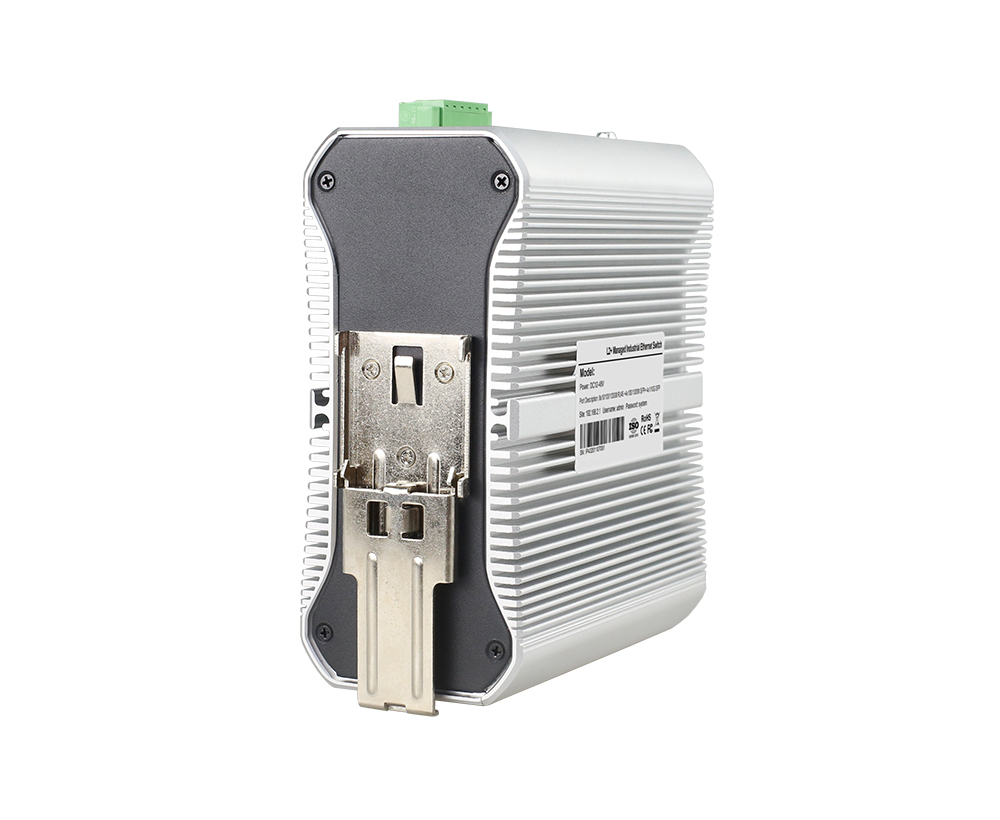

Desktop, 35mm DIN Rail |
|
Certification& Warranty |
|
|
Lightning Protection |
IEC61000-4-3 (RS):10V/m (80-1000MHz) FCC Part 15/CISPR22 (EN55022): Class A IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV Protection level: IP40, Lightning protection: 6KV 8/20us IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV |
|
Mechanical Properties |
IEC60068-2-6 (Anti Vibration), IEC60068-2-27 (Anti Shock), IEC60068-2-32 (Free Fall) |
|
Certification |
CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS |
|
Warranty |
5 years, lifelong maintenance. |
|
Network Management Feature |
|
|
Interface |
Port real-time flow management (Flow Interval) Broadcast storm suppression based on port rate SFP optical module DDMI real-time digital diagnosis Port EEE Green Ethernet Energy-Saving configuration and status view IEEE802.3x flow control (Full duplex), Port exception protection mechanism Limit the rate of packet traffic on incoming and outgoing ports, the mini granularity is 16Kbps and max 1Gbps |
|
Layer 3 Features |
Pingv6, Telnetv6, TFTPv6, DNSv6, ICMPv6 VLANIF interfaces for IPV4/IPV6, up to 64 entries IPV4/IPV6 static routing/default routing, up to 64 entries NG protocol max 1000 entries, ARP protocol max 1000 entries IPV4 equal cost routing, VRRP for IPV4/IPV6, up to 255 entries IPV4 dynamic routing, RIPv1/v2, OSPFv2, routing 2000 entries L3 network management function, IPV4/ IPV6 dual-stack management L3 routing and forwarding, support communication between different network segments and different VLAN |
|
VLAN |
Port configuration of Access, Trunk, Hybrid, IEEE 802.1q Voice VLAN, GVRP VLAN protocol, Port-based VLAN (4K) Protocol-based VLAN, MAC address-based VLAN, QinQ configuration |
|
Port Aggregation |
LACP dynamic aggregation, Static aggregation, Max 6 aggregation groups and max 8 ports per group. |
|
Spanning Tree |
STP BPDU Guard, BPDU filtering and BPDU forwarding STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s) |
|
ERPS Ring Network |
ERPS ring network, Recovery time less than 20ms, ITU-T G.8032 |
|
Multicast |
Multicast VLAN, User quick log out, MLD Snooping, MVR (Multicast VLAN Registration), IGMP Snooping v1/v2/v3 and 1024 multicast groups at most |
|
Mirroring |
Bidirectional traffic mirroring for basic ports one-to-multiple mirroring, supports up to 4 port sessions |
|
QoS |
Flow-based Rate Limiting, Flow-based redirection Queue Scheduling Algorithm (SP, WRR, SP+WRR) Flow-based Packet Filtering, 8*Output queues of each port 802.1p/DSCP priority mapping, Diff-Serv QoS, Priority Mark/Remark |
|
ACL |
ACL is issued based on port and VLAN L2-L4 packet filtering function can match the first 80 bytes of the message and provide ACL definition based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port range, VLAN, etc. |
|
Security |
Port based IEEE802.1X authentication Port isolation, IP Source Guard function SSL guarantees data transmission security Quad binding function of IP+MAC+VLAN+ports MAC address learning limit, MAC address black hole Anti DoS attack, Port broadcast message suppression Hierarchical user management and password protection SSH 2.0 provides a secure encrypted channel for user login Host data backup mechanism, ARP intrusion detection function IP source address protection, ARP message speed limit function Support AAA, RADIUS, TACACS+ authentication (only supports authentication, not authorization and accounting) |
|
DHCP |
DHCP Client, DHCP Snooping, DHCP Server |
|
Management |
System work log, Link Layer Discovery Protocol NTP clock, Cable length detection, SNMP V1/V2/V3 Ping detection, Web network management (HTTPS) HTTP, TFTP file upload and download management Console/ SSH/ Telnet/ CLI command line configuration ONV-NMS platform cluster management (LLDP+SNMP) One click recovery, View CPU real-time utilization status |
|
System |
Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5 and above Ethernet cable |
