300Mbps 2.4G outdoor wireless bridge

Model： ONV-WQ300M2401

The ONV-WQ300M2401 is a 2.4GHz outdoor wireless bridge delivering 300Mbps data rates for video surveillance across elevators, tower cranes, residential areas, schools, factories, farms, and scenic spots. With a built-in 8dBi directional antenna, it supports point-to-point links up to 1000 meters, mounts easily on walls or poles, and performs reliably in wind, rain, or snow.

I want to make an inquiry

Overview
Technical Specification

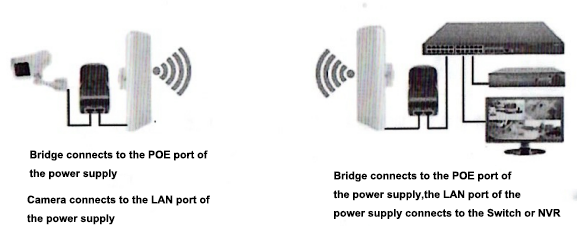

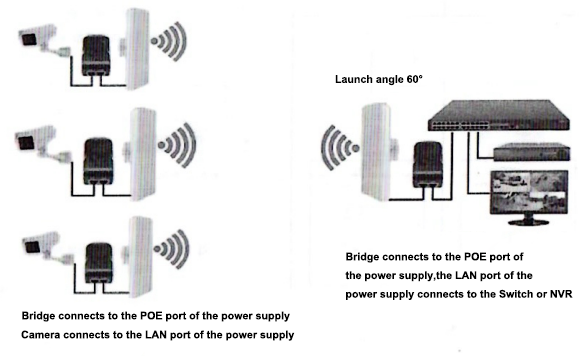

Application
Documents
Related Products

OVERVIEW

The ONV-WQ300M2401 is an outdoor wireless bridge designed for video surveillance in applications including elevators, tower cranes, residential areas, schools, factories, orchards, farms, and scenic areas. It operates in the 2.4GHz band and can provide a maximum wireless data transmission rate of 300Mbps. It features a built-in 8dBi high-gain directional antenna, resulting in stronger signal penetration and an outdoor point-to-point bridging distance of up to 1000 meters. It can be directly mounted on walls or poles. It can operate in various outdoor environments, including wind, rain, and snow.

FEATURE

◇ 2.4GHz: Wireless speed 300Mbps

◇ 8dBi high-gain directional antenna

◇ IP65 waterproof and dustproof protection

◇ Two power supply options available: Ethernet port supports PoE input 24V and DC port supports input 12V.

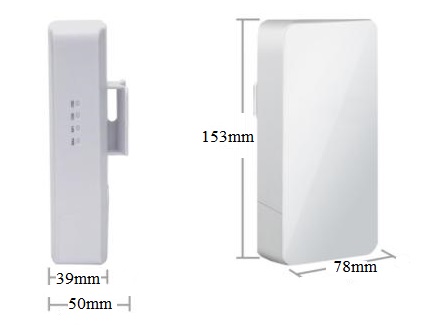

DIMENSION

TECHNICAL SPECIFICATION

Model	ONV-WQ300M2401
Hardware Specification
CPU	MT7628
Storage	Flash: 2M, DDR: 8M
Wired Standard	IEEE 802.3, IEEE 802.3u
Ethernet Port	2*10/100Mbps LAN ports
Antenna	Built-in directional antenna 8dBi
Button	1*Reset Button
Power Supply Method	PoE 24V or DC 12V

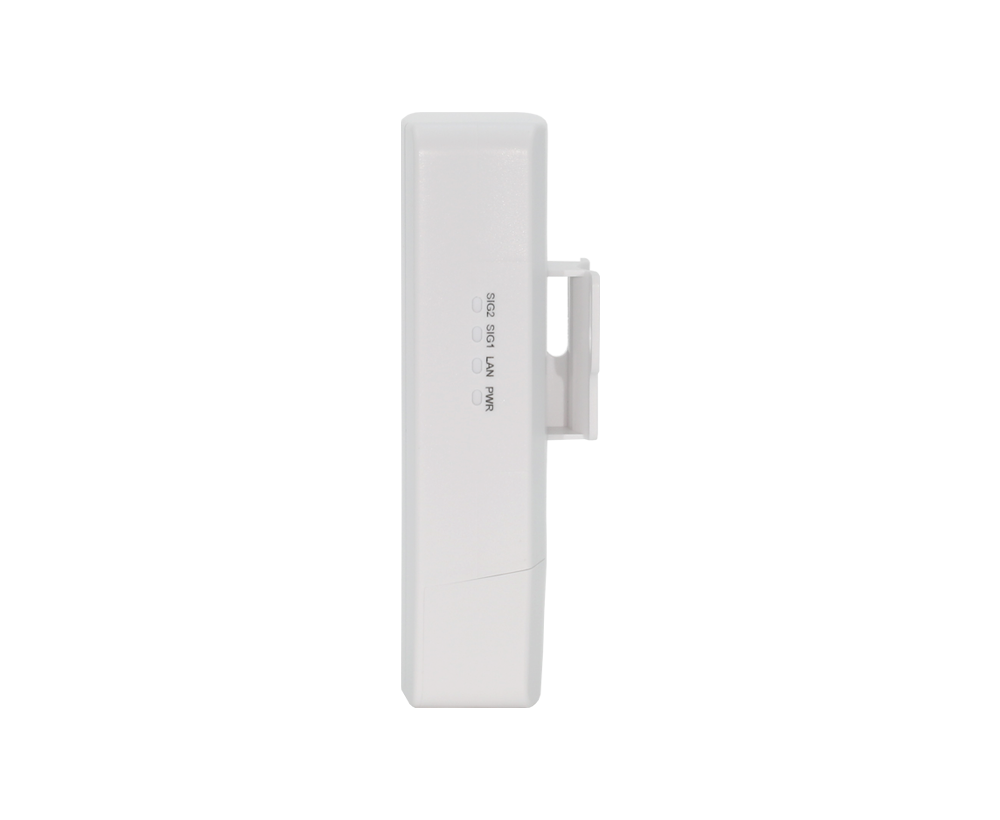

Panel Indicator	4*LED (POWER, LAN, SIG1, SIG2 (signal strength))
Software Specification
Operating Mode	Main Bridge (AP mode) Subnet Bridge (Client mode) Subnet Bridge (AP+Client mode)
Wireless Settings	Basic settings: wireless name, encryption method, wireless password, wireless mode Advanced settings: BG protection mode, Wi-Fi multimedia (WMM) disabled
Network Settings	LAN Settings, DHCP Server Settings
System Management	Firmware upgrade, language settings, system configuration, administrator settings, automatic system cleanup
Wireless Specification
Wireless Standard	IEEE 802.11b/g/n
Wireless Rate	300Mbps
Wireless Power	20dBm
Wireless Receiver Sensitivity	-89dBm
Wireless Frequency Bands	2.4GHz
Physical Specification
Operation Temp/ Humidity	-10~55°C, 10%~90% RH non-condensing
Storage Temp/ Humidity	-40~80°C, 5%~95% RH non-condensing
Net Dimension	1537850mm
Net /Gross Weight	0.316kg/ 0.146kg

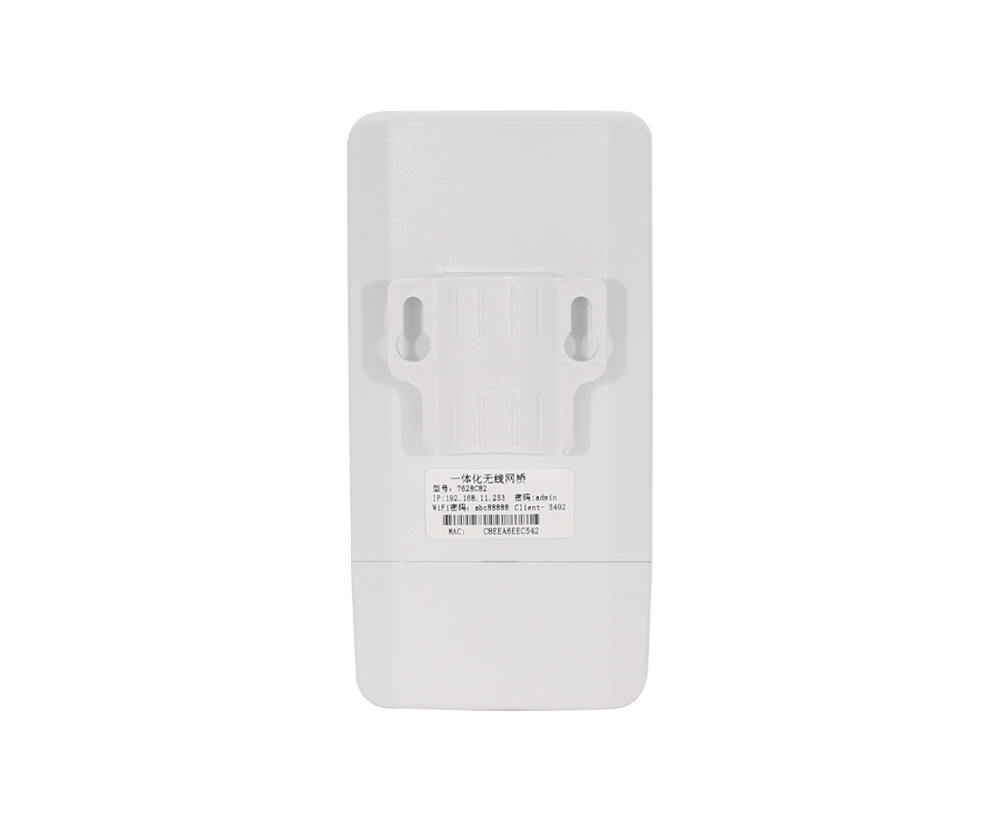

Installation	Pole-mounted, wall-mounted
