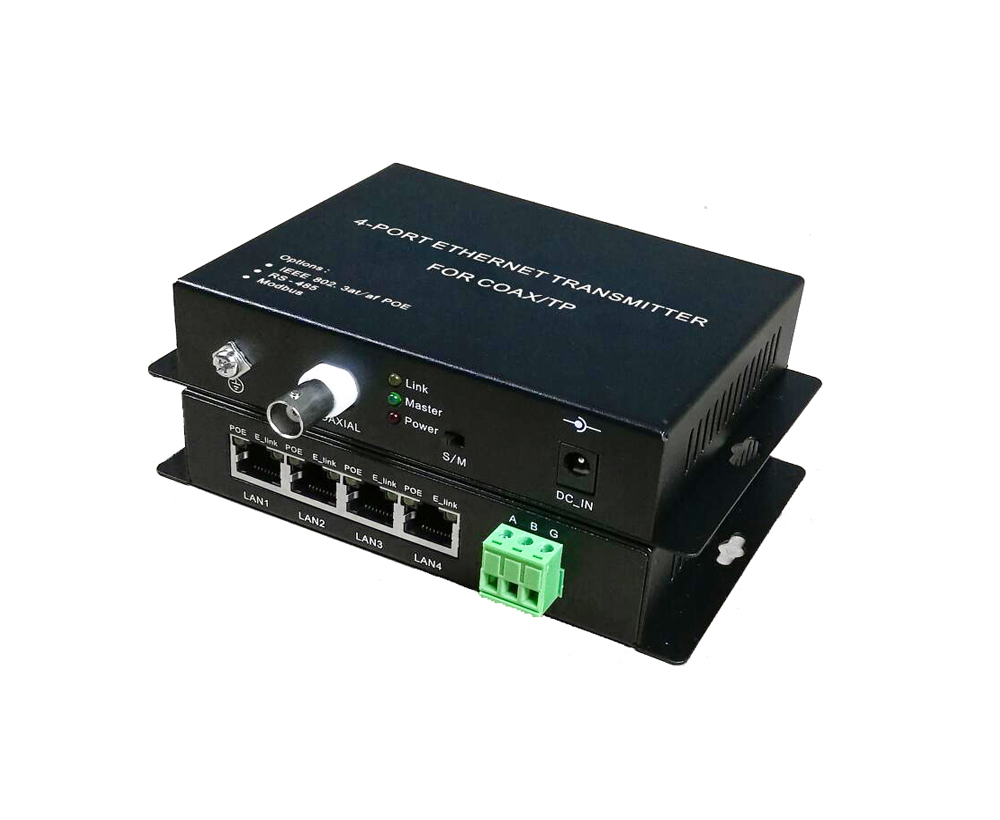

OVERVIEW

The EOC1C4E-3 coaxial cable EOC converter is a high-speed network transmission device. IEEE-based P1901 technology can transmit high-definition video and high-speed data signals through any two-core cable. Such as elevator accompanying cables, twisted pairs, coaxial lines, etc. for long-distance transmission, the transmission distance can be up to 2000 meters (75-5 coaxial line). Network signals and RS485 signals can also be transmitted on one cable at the same time. It can support remote power supply and signal transmission via common cable, which facilitates construction and saves costs.

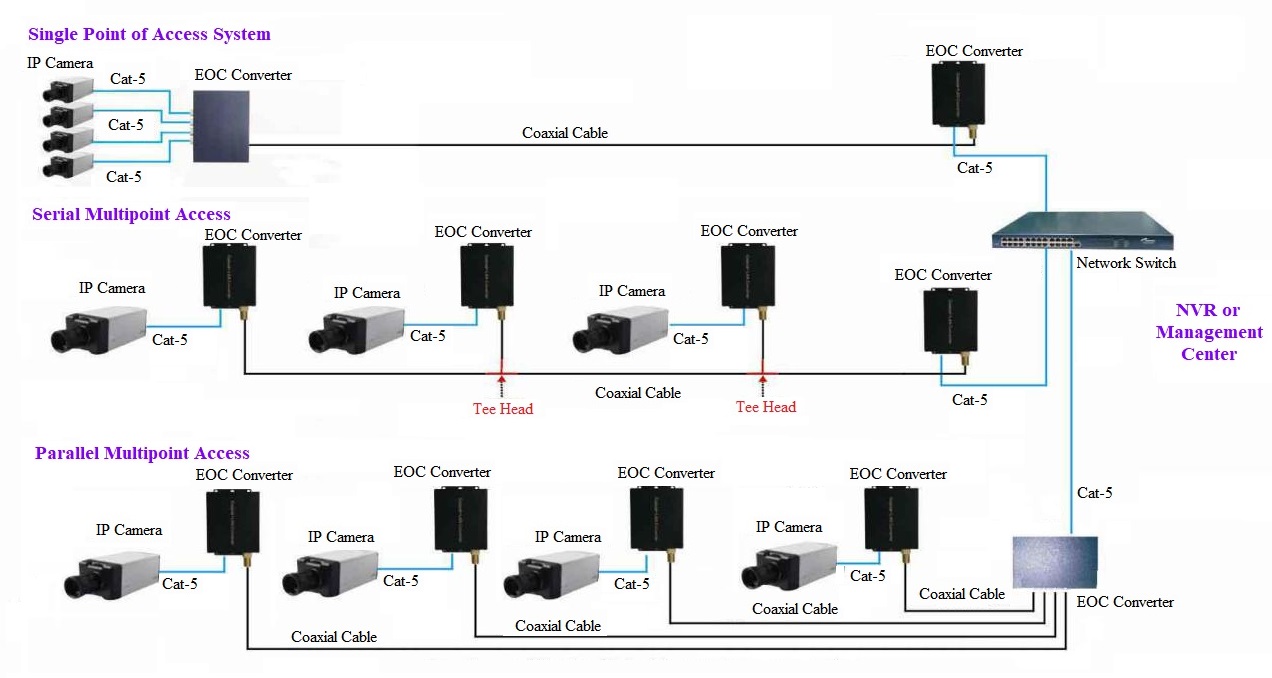

The EOC1C4E-3 can support one-to-one and one-to-multipoint data transmission. long transmission distance, high communication rate, and support multimedia services, networking, etc.

FEATURE

◇ Easy to use. Supports plug-and-play, no need to change any configuration of network terminal equipment such as network cameras.

◇ Supports multi-node networking. Up to 20 network cameras and other terminal devices can be connected to one power line or cable at the same time.

◇ Security and confidentiality. Supports AES-128 security encryption. Supports manufacturers, users can code by themselves and change communication passwords on-site instantly.

◇ Long transmission distance. For ordinary SVY75-5 cable, the maximum transmission distance can reach 2Km, while maintaining the TCP/IP throughput not less than 30Mbps.

◇ Supports PoC (power over cable) remote power supply. Coaxial cables or telephone lines can be used to provide power to remote devices. When using 500M SVY75-5 cable, it supports 40W power output.

◇ High communication speed. Based on the SVY75-5 circuit, on-site measured TCP/IP throughput data:

◇ 1) The cable length is less than 400M-92Mbps.

◇ 2) The cable length is less than 1000M-74Mbps.

◇ 3) The cable length is less than 2000M-30Mbps.

◇ It can make full use of the original coaxial cable, power line or telephone line wiring without re-laying communication media such as Ethernet, which greatly simplifies network deployment and reduces network installation costs.

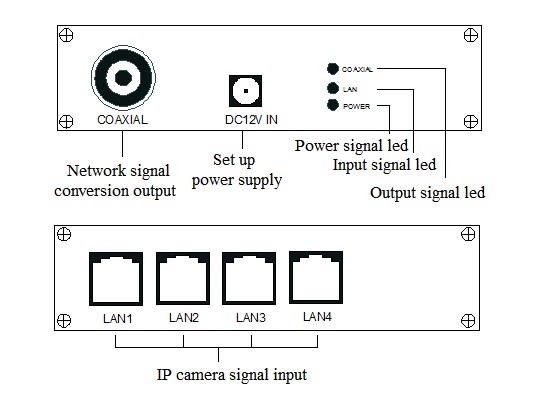

DIMENSION

Equipped with Led indicators

POWER: power indicator.

Coaxial: Physical link connection indicator: When the coaxial cable or twisted pair physical line is connected, the indicator light is always on. If the indicator light is off, please check the transmission line.

LAN: Ethernet interface connection/activity indicator: The indicator light is always on when the Ethernet connection has been established, and the indicator light flashes when there is data activity on the Ethernet connection.

Configuration button

The device defaults to the host (MASTER)

ORDERING INFORMATION

PACKING LIST
